3. (20 points) Two support cables are tethered to the ground. The tensions in the cables are shown as well as points on

Post by answerhappygod »

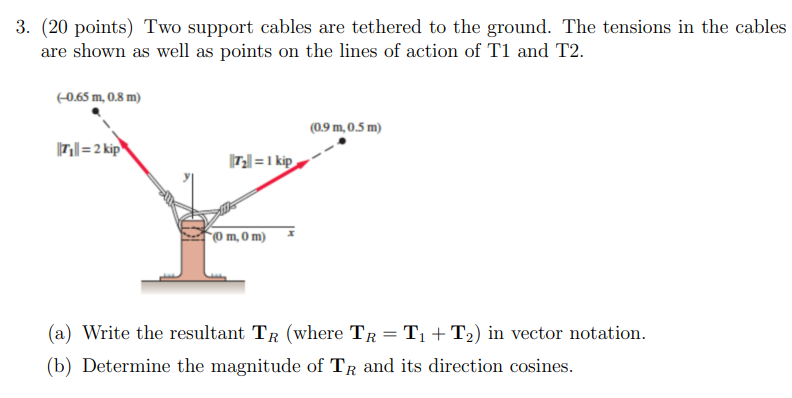

3 20 Points Two Support Cables Are Tethered To The Ground The Tensions In The Cables Are Shown As Well As Points On 1
3 20 Points Two Support Cables Are Tethered To The Ground The Tensions In The Cables Are Shown As Well As Points On 1 (59.11 KiB) Viewed 30 times
3. (20 points) Two support cables are tethered to the ground. The tensions in the cables are shown as well as points on the lines of action of T1 and T2. (-0.65 m, 0.8m) (0.9 m, 0.5 m) 71 l = 2 kip 172l = 1 kip "O m, 0 m) (a) Write the resultant Tr (where TR = T1+T2) in vector notation. (b) Determine the magnitude of TR and its direction cosines.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
