Question 3 _kpa (Gauge). All fluids are at 20 C. What is the absolute pressure Not yet answered In the figurer, the pres

[answerhappygod]

Question 3 Kpa Gauge All Fluids Are At 20 C What Is The Absolute Pressure Not Yet Answered In The Figurer The Pres 1 (247.87 KiB) Viewed 34 times

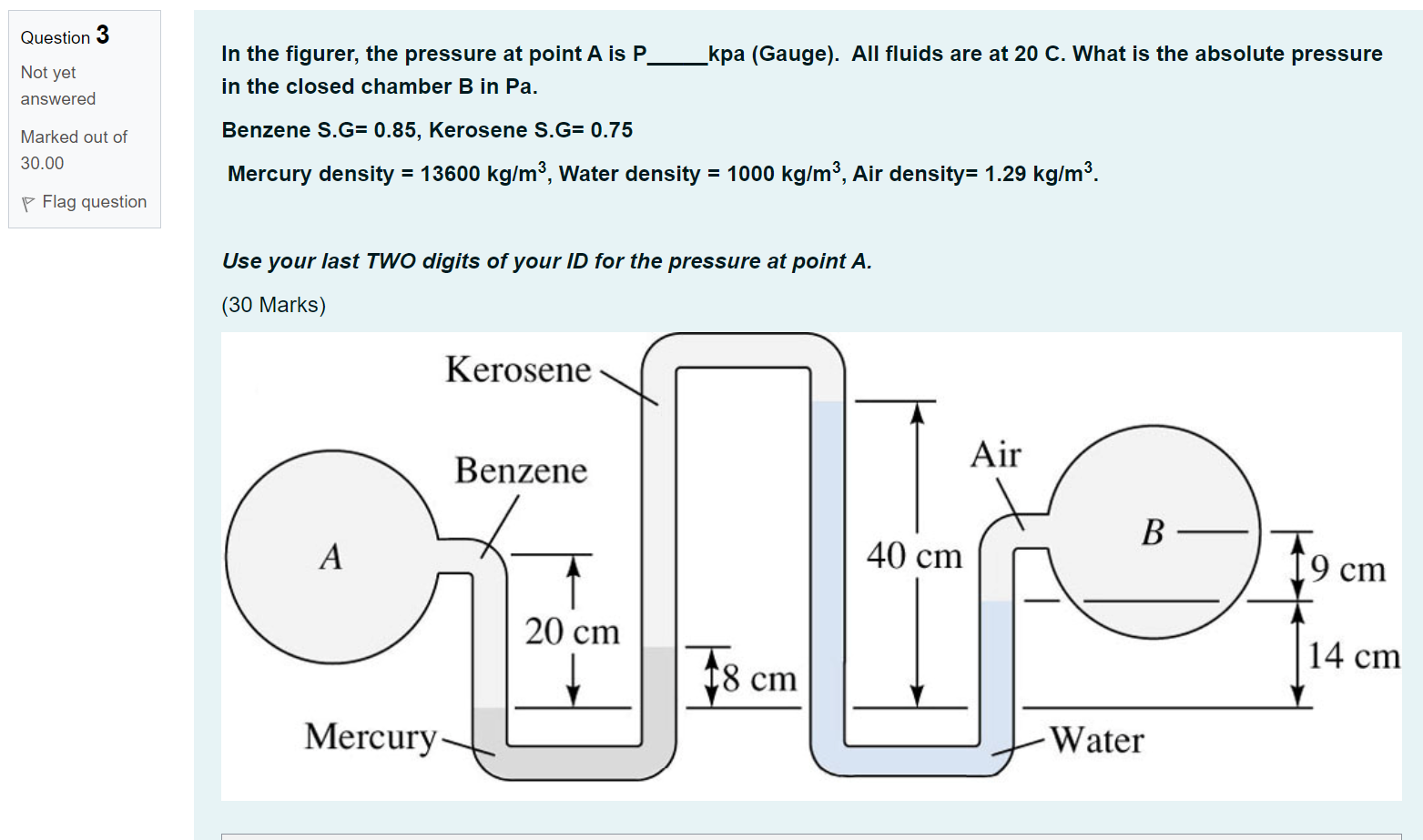

Question 3 _kpa (Gauge). All fluids are at 20 C. What is the absolute pressure Not yet answered In the figurer, the pressure at point A is P. in the closed chamber B in Pa. Marked out of 30.00 Benzene S.G= 0.85, Kerosene S.G= 0.75 Mercury density = 13600 kg/m3, Water density = 1000 kg/m3, Air density= 1.29 kg/m3 Flag question Use your last TWO digits of your ID for the pressure at point A. (30 Marks) Kerosene Air Benzene B- A 40 cm 19 cm 20 cm 14 cm 18 cm Mercury Water
