- Question 1 Not Yet Answered In The Figurer The Pressure At Point A Is P Kpa Gauge All Fluids Are At 20 C What Is T 1 (106.65 KiB) Viewed 59 times

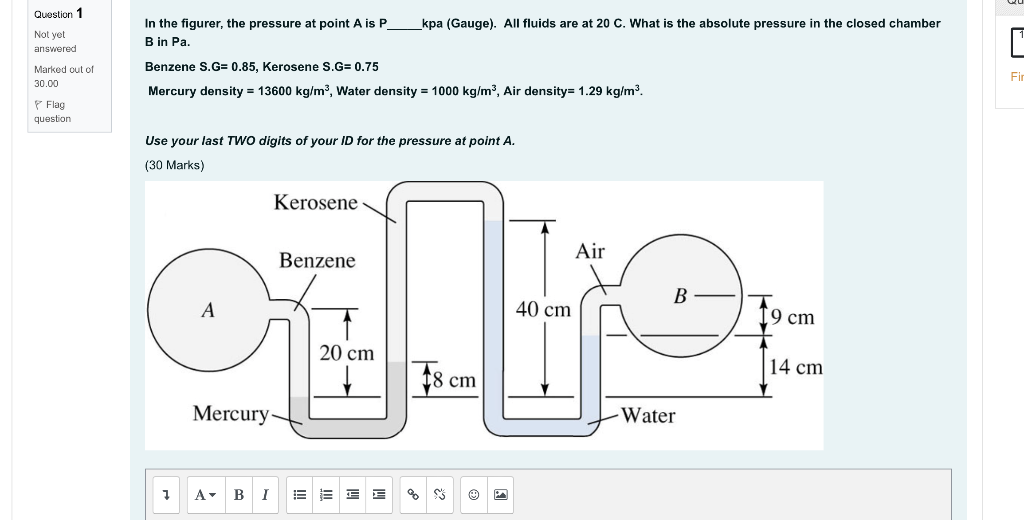

Question 1 Not yet answered In the figurer, the pressure at point A is P _kpa (Gauge). All fluids are at 20 C. What is the absolute pressure in the closed chamber B in Pa. Benzene S.G= 0.85, Kerosene S.G= 0.75 Mercury density = 13600 kg/m?, Water density = 1000 kg/mº, Air density= 1.29 kg/m² Marked out of 30.00 Fir Flag question Use your last TWO digits of your ID for the pressure at point A. (30 Marks) Kerosene Air Benzene B A 40 cm 9 cm 20 cm 14 cm 18 cm Mercury Water 7 A B I 5 E
