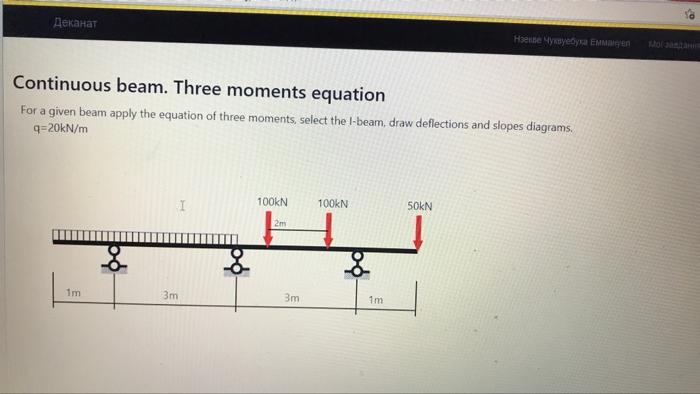

Деканат Ненее чукулесува Еммиа Continuous beam. Three moments equation For a given beam apply the equation of three moments, select the l-beam, draw deflections and slopes diagrams. q=20kN/m I 100KN 100KN 50kN 2m 오이 bo & 1m 3m 3m 1m

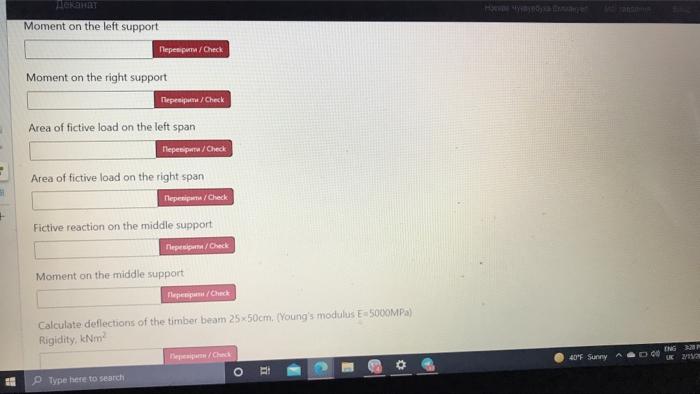

Wys Moment on the left support Mepenport/Check Moment on the right support Tepesipura / Check Area of fictive load on the left span Tepesportiu / Check Area of fictive load on the right span Перевірити / Check Fictive reaction on the middle support Pepesuri/Check Moment on the middle support pen/Check Calculate deflections of the timber beam 25x50cm. (Young's modulus E-5000MPa) Rigidity, kNm 40°F Sunny KE Check o RI Type here to search

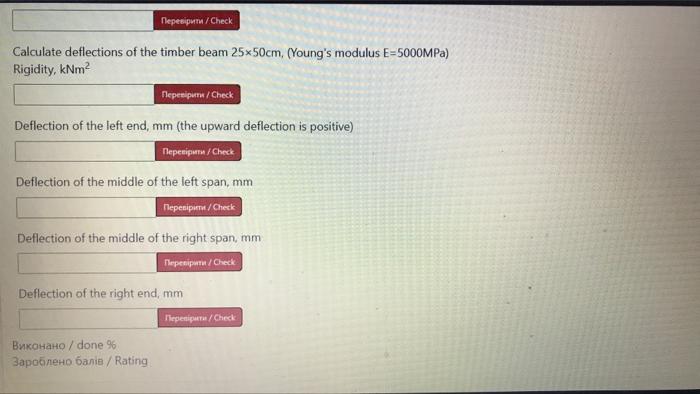

Перевірити / Check Calculate deflections of the timber beam 25x50cm, (Young's modulus E=5000MPa) Rigidity, kNm2 Перевірити / Check Deflection of the left end, mm (the upward deflection is positive) Tepenipun / Check Deflection of the middle of the left span, mm Перевірити / Check Deflection of the middle of the right span, mm Перевірити / Check Deflection of the right end, mm Pepenipuru / Check Bykowano / done 96 Зароблено балів / Rating
