8:11 Search Done Expert Q&A Please construct graphs to determine the spring constant using a graphics software (please u

[answerhappygod]

8 11 Search Done Expert Q A Please Construct Graphs To Determine The Spring Constant Using A Graphics Software Please U 1 (36.62 KiB) Viewed 57 times

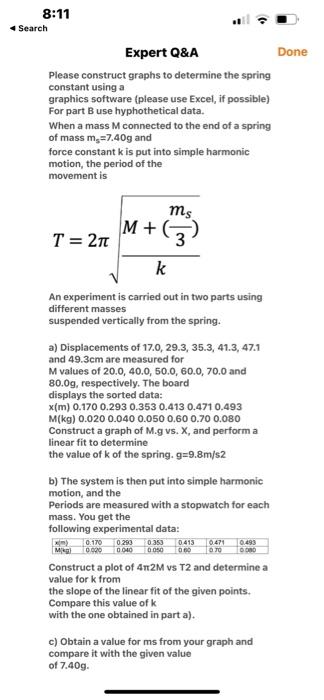

8:11 Search Done Expert Q&A Please construct graphs to determine the spring constant using a graphics software (please use Excel, if possible) For part B use hyphothetical data. When a mass M connected to the end of a spring of mass m =7.40g and force constant kis put into simple harmonic motion, the period of the movement is ms M+ T = 211 3 k An experiment is carried out in two parts using different masses suspended vertically from the spring. a) Displacements of 17.0, 29.3, 35.3, 41.3, 47.1 and 49.3cm are measured for M values of 20.0, 40.0,50.0, 60.0, 70.0 and 80.0g, respectively. The board displays the sorted data: x(m) 0.170 0.293 0.353 0.413 0.4710.493 M(kg) 0.020 0.040 0.050 0.60 0.70 0.080 Construct a graph of Mig vs. X, and performa linear fit to determine the value of k of the spring. g=9.8m/s2 b) The system is then put into simple harmonic motion, and the Periods are measured with a stopwatch for each mass. You get the following experimental data: 0.170 0 200 0.35 0.413 0.471,499 MG000000400050 000 Construct a plot of 4712M vs T2 and determine a value for k from the slope of the linear fit of the given points. Compare this value of k with the one obtained in part a). c) Obtain a value for ms from your graph and compare it with the given value of 7.40g. 1070 1 DOND
