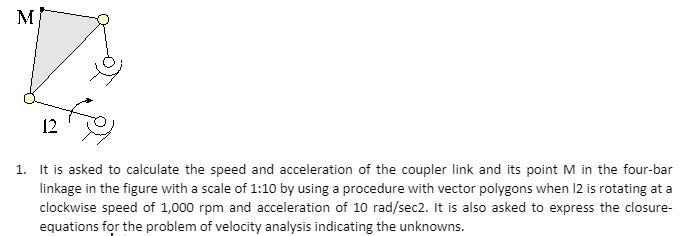

M 12 1. It is asked to calculate the speed and acceleration of the coupler link and its point M in the four-bar linkage in the figure with a scale of 1:10 by using a procedure with vector polygons when 12 is rotating at a clockwise speed of 1,000 rpm and acceleration of 10 rad/sec2. It is also asked to express the closure equations for the problem of velocity analysis indicating the unknowns.
answers, it would be of great help.
M 12 1. It is asked to calculate the speed and acceleration of the coupler link and its point M in the four-bar linkage in the figure with a scale of 1:10 by using a procedure with vector polygons when 12 is rotating at a clockwise speed of 1,000 rpm and acceleration of 10 rad/sec2. It is also asked to express the closure equations for the problem of velocity analysis indicating the unknowns.
