7) Let there be an I controller with reference r = 0, system (SIST) block transfer function 1/(s+1) controller (KONT) bl

Post by answerhappygod »

7 Let There Be An I Controller With Reference R 0 System Sist Block Transfer Function 1 S 1 Controller Kont Bl 1
7 Let There Be An I Controller With Reference R 0 System Sist Block Transfer Function 1 S 1 Controller Kont Bl 1 (20.78 KiB) Viewed 52 times

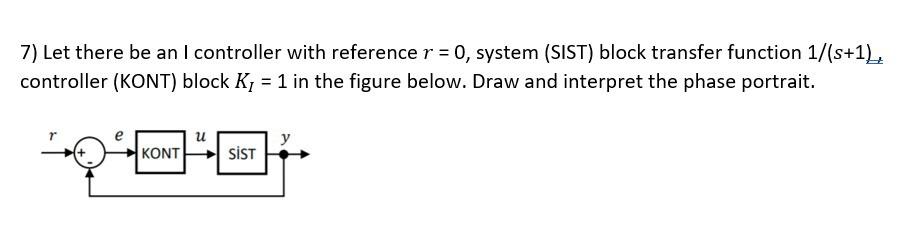

7) Let there be an I controller with reference r = 0, system (SIST) block transfer function 1/(s+1) controller (KONT) block Ki = 1 in the figure below. Draw and interpret the phase portrait. KONT SİST
