A cantilever beam with a 1-in-diameter round cross section and total length (L) of 10 in is loaded at the tip with a tra

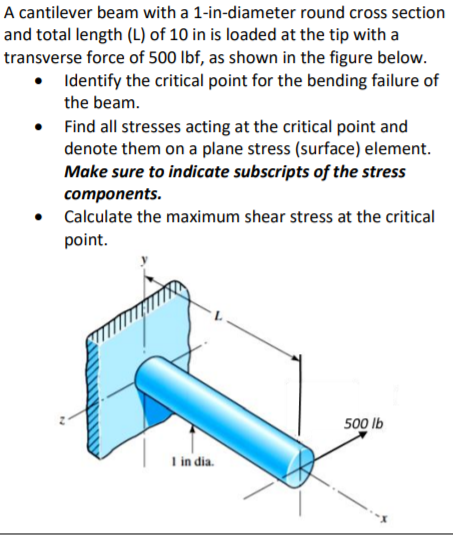

A cantilever beam with a 1-in-diameter round cross section and total length (L) of 10 in is loaded at the tip with a transverse force of 500 lbf, as shown in the figure below. • Identify the critical point for the bending failure of the beam. • Find all stresses acting at the critical point and denote them on a plane stress (surface) element. Make sure to indicate subscripts of the stress components. • Calculate the maximum shear stress at the critical point. 500 lb 1 in dia.
