The ring at B is supported in equilibrium by spring AB, a cable running through the frictionless pulley at C, and cable

Post by answerhappygod »

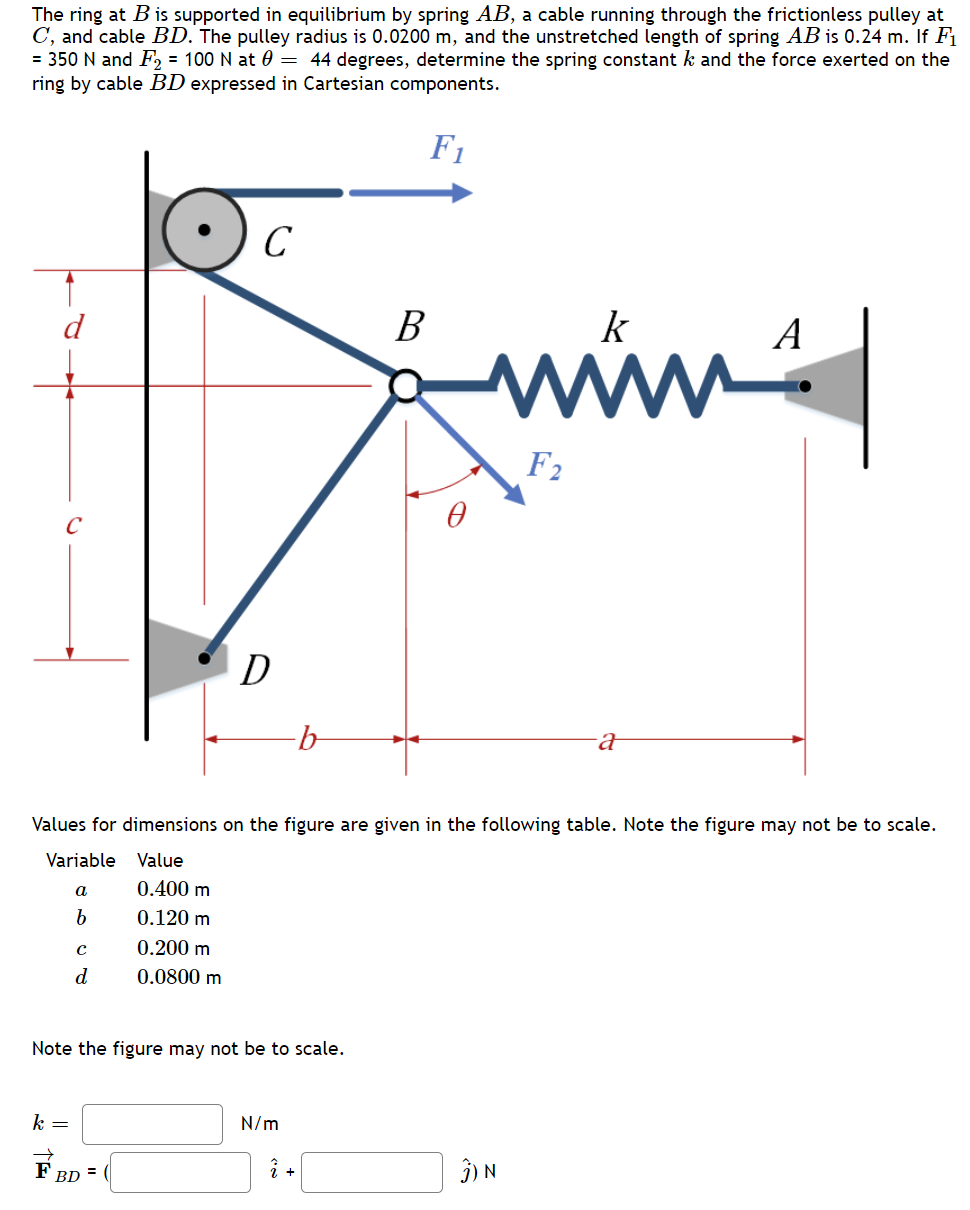

The Ring At B Is Supported In Equilibrium By Spring Ab A Cable Running Through The Frictionless Pulley At C And Cable 1
The Ring At B Is Supported In Equilibrium By Spring Ab A Cable Running Through The Frictionless Pulley At C And Cable 1 (117.75 KiB) Viewed 56 times
The ring at B is supported in equilibrium by spring AB, a cable running through the frictionless pulley at C, and cable BD. The pulley radius is 0.0200 m, and the unstretched length of spring AB is 0.24 m. If Fi = 350 N and F2 = 100 N at @= 44 degrees, determine the spring constant k and the force exerted on the ring by cable BD expressed in Cartesian components. 1 С d B Sinin F2 ө D a Values for dimensions on the figure are given in the following table. Note the figure may not be to scale. Variable Value a 0.400 m b 0.120 m 0.200 m d 0.0800 m с Note the figure may not be to scale. k= N/m FBD = it À ÎN
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
