A velocity field is given by the following in the xy-plane where the units are in mand s. V = (2x2y)i + (0.5x2t)j a) Des

[answerhappygod]

A Velocity Field Is Given By The Following In The Xy Plane Where The Units Are In Mand S V 2x2y I 0 5x2t J A Des 1 (26.91 KiB) Viewed 56 times

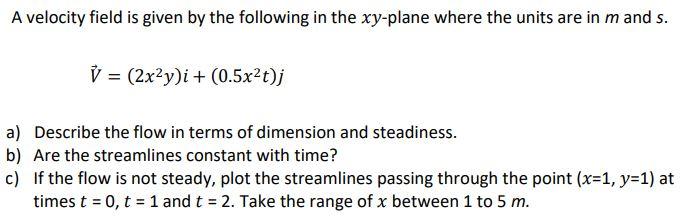

A velocity field is given by the following in the xy-plane where the units are in mand s. V = (2x2y)i + (0.5x2t)j a) Describe the flow in terms of dimension and steadiness. b) Are the streamlines constant with time? c) If the flow is not steady, plot the streamlines passing through the point (x=1, y=1) at times t = 0, t = 1 and t = 2. Take the range of x between 1 to 5 m.
