PROCESS INSTRUMENTATION AND CONTROL

Post by answerhappygod »

PROCESS INSTRUMENTATION AND CONTROL
Process Instrumentation And Control 1
Process Instrumentation And Control 1 (33.75 KiB) Viewed 74 times

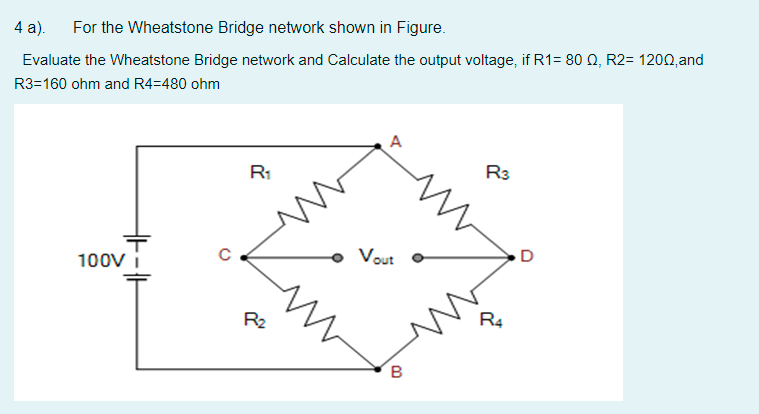

4 a). For the Wheatstone Bridge network shown in Figure. Evaluate the Wheatstone Bridge network and Calculate the output voltage, if R1= 80, R2= 1200, and R3=160 ohm and R4=480 ohm A R1 w R3 100V i с Vout D R2 Vu R4 B B
