This Boolean Expression Ab A B C B B C May Be Reduced To Which Expression From Below Note A Means A Not 1 (156.87 KiB) Viewed 57 times

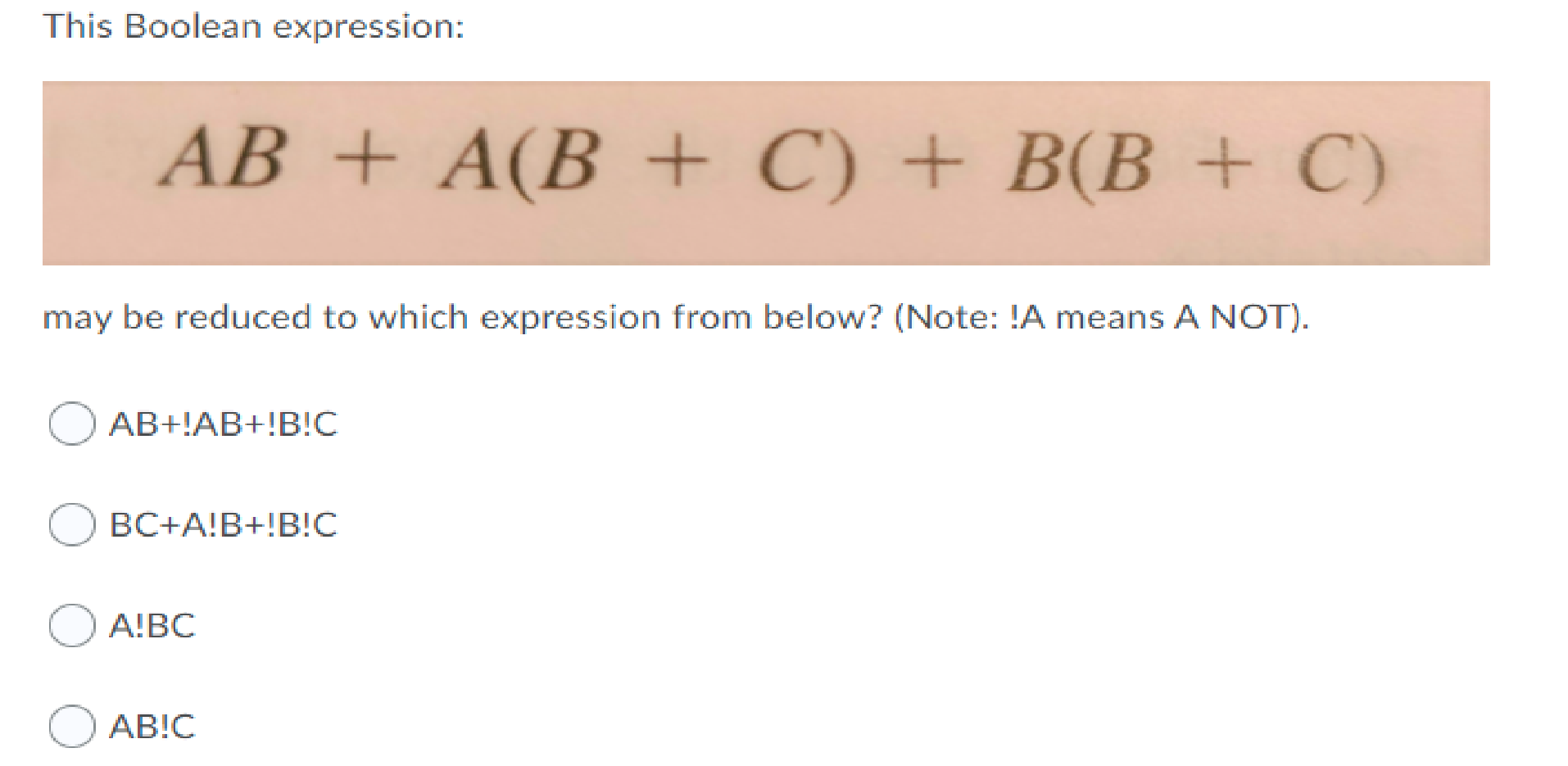

This Boolean expression: AB + A(B + C) + B(B + C) may be reduced to which expression from below? (Note: !A means A NOT). AB+!AB+!B!C BC+A!B+!B!C A!BC AB!C
Relative to the circuit illustrated below Schematic 5-Volt regulated DC power supply one could say: The LED will turn ON when the push-button is pressed down and will be OFF when the push-button is released. The LED will turn OFF When the push-button is pressed down and will be ON when the push-button is open. The LED will turn ON regardless the position of the push-button. The LED will turn OFF regardless the position of the push-button. None of these is true.
