FIG. 176 Problem 32. 33. Determine v, for each network of Fig. 177 for the input shown. Vi Si 2.2 k92 Si 4 V 12 V Vio Ov

Post by answerhappygod »

Fig 176 Problem 32 33 Determine V For Each Network Of Fig 177 For The Input Shown Vi Si 2 2 K92 Si 4 V 12 V Vio Ov 1
Fig 176 Problem 32 33 Determine V For Each Network Of Fig 177 For The Input Shown Vi Si 2 2 K92 Si 4 V 12 V Vio Ov 1 (258.03 KiB) Viewed 62 times
please do (b) bit only

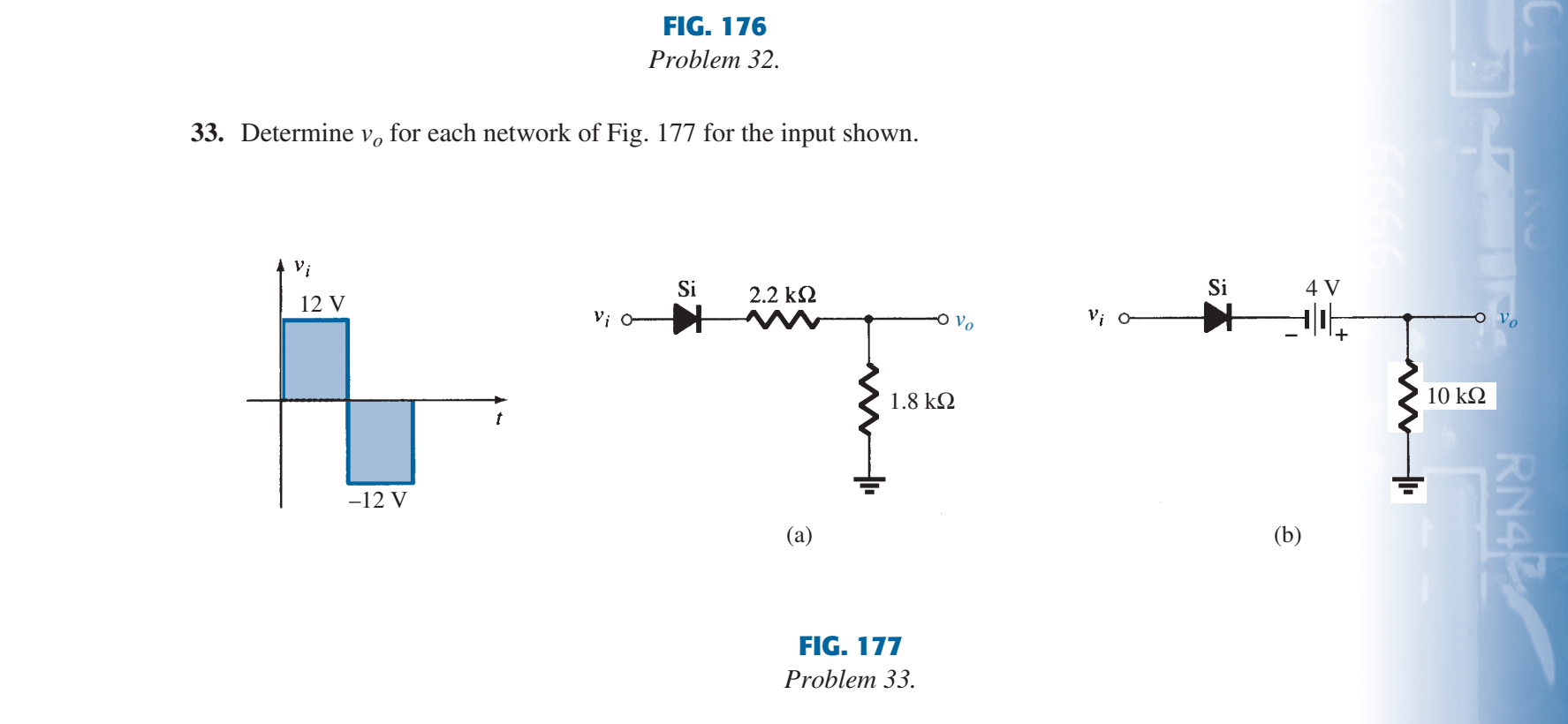

FIG. 176 Problem 32. 33. Determine v, for each network of Fig. 177 for the input shown. Vi Si 2.2 k92 Si 4 V 12 V Vio Ovo Vio Hlutt vo 1.8 k92 10 k92 -12 V (a) (b) RN4E FIG. 177 Problem 33.
