A series RC circuit is shown in the figure below. The voltage across the capacitor is treated as the output and the appl

Post by answerhappygod »

A Series Rc Circuit Is Shown In The Figure Below The Voltage Across The Capacitor Is Treated As The Output And The Appl 1
A Series Rc Circuit Is Shown In The Figure Below The Voltage Across The Capacitor Is Treated As The Output And The Appl 1 (46.06 KiB) Viewed 71 times

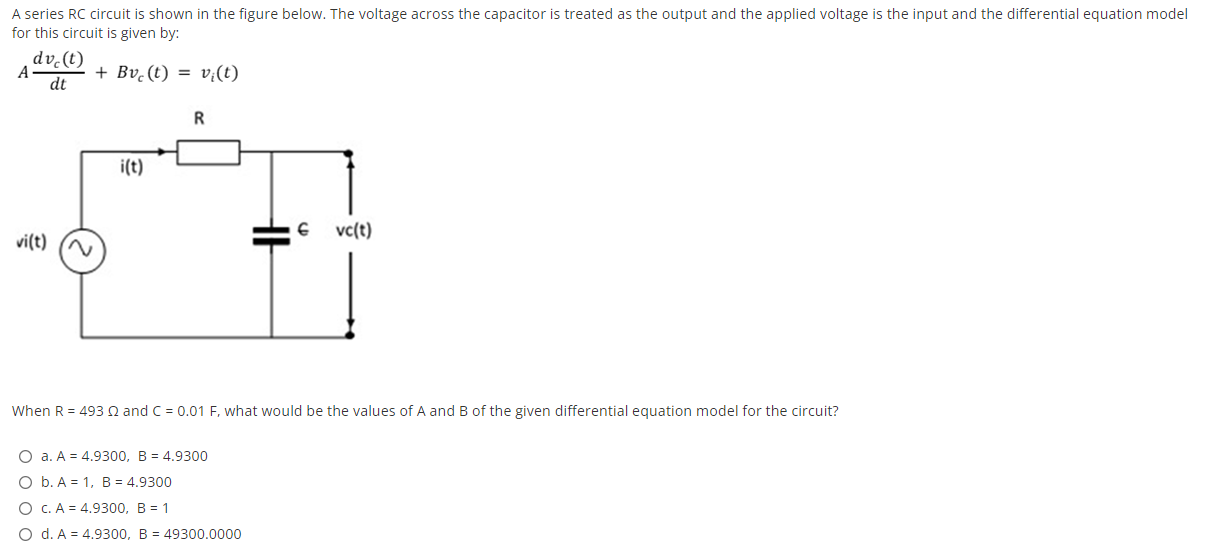

A series RC circuit is shown in the figure below. The voltage across the capacitor is treated as the output and the applied voltage is the input and the differential equation model for this circuit is given by: dv.(t) A + Bv. (t) = v;(t) dt R i(t) E HE vc(t) vi(t) (N When R = 493 and C = 0.01 F, what would be the values of A and B of the given differential equation model for the circuit? O a. A = 4.9300, B = 4.9300 O b. A = 1, B = 4.9300 O C. A = 4.9300, B = 1 O d. A = 4.9300, B = 49300.0000
