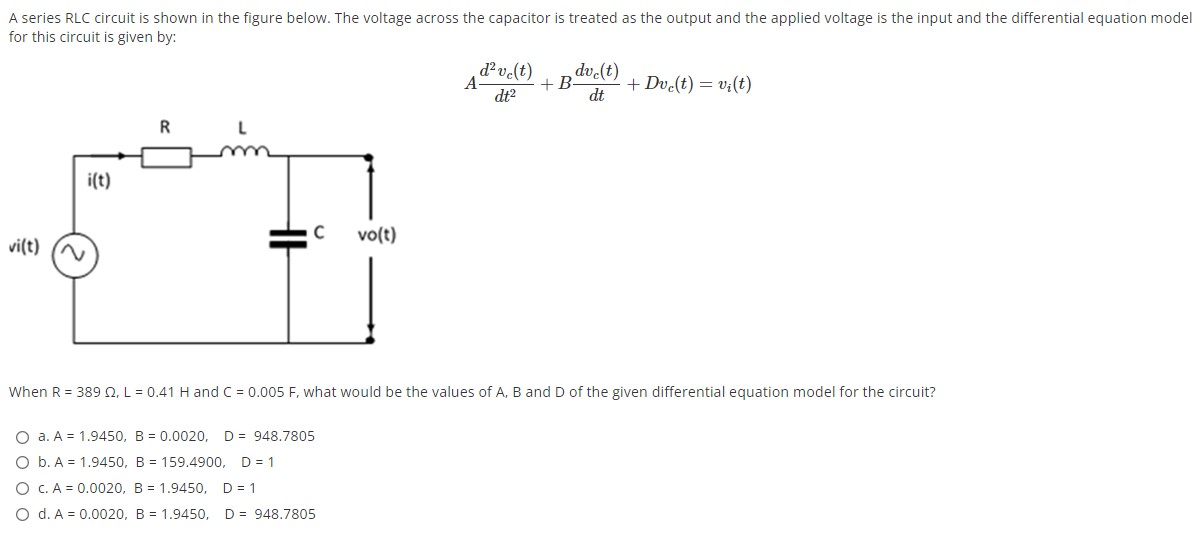

A series RLC circuit is shown in the figure below. The voltage across the capacitor is treated as the output and the applied voltage is the input and the differential equation model for this circuit is given by: d've(t) ducit) A +B + Dve(t) = vi(t) dt2 dt R i(t) с vo(t) vi(t) When R = 389 , L = 0.41 H and C = 0.005 F, what would be the values of A, B and D of the given differential equation model for the circuit? O a. A = 1.9450, B = 0.0020, D = 948.7805 O b. A = 1.9450, B = 159.4900, D = 1 O c. A = 0.0020, B = 1.9450, D = 1 O d. A = 0.0020, B = 1.9450, D = 948.7805
