τον ο οι1 row 10/1 Consider the schematic shown. The row boxes with 0/1 are switches, where row O is the LSB Draw the si
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
τον ο οι1 row 10/1 Consider the schematic shown. The row boxes with 0/1 are switches, where row O is the LSB Draw the si

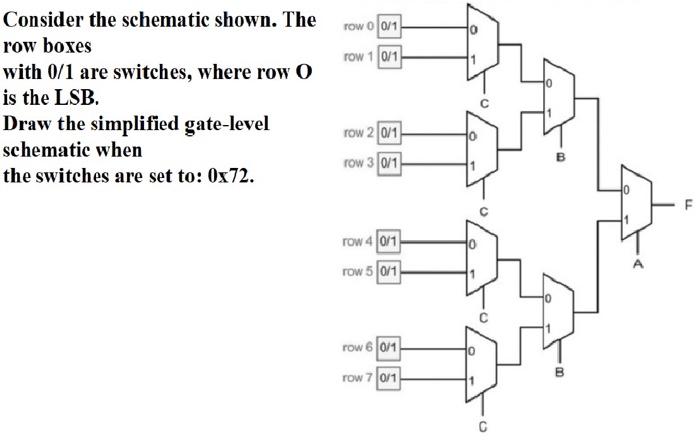

τον ο οι1 row 10/1 Consider the schematic shown. The row boxes with 0/1 are switches, where row O is the LSB Draw the simplified gate-level schematic when the switches are set to: 0x72. row 20/1 row 30/1 B F row 40/1 row 50/1 row 60/1 00 B row 70/1 С
