WRITE YOUR ANSWERS IN PAPER AND UPLOAD IT AS SINGLE PDF) 11. Analyse the given circuit to determine the Total resistance

Post by answerhappygod »

Write Your Answers In Paper And Upload It As Single Pdf 11 Analyse The Given Circuit To Determine The Total Resistance 1
Write Your Answers In Paper And Upload It As Single Pdf 11 Analyse The Given Circuit To Determine The Total Resistance 1 (161.26 KiB) Viewed 37 times

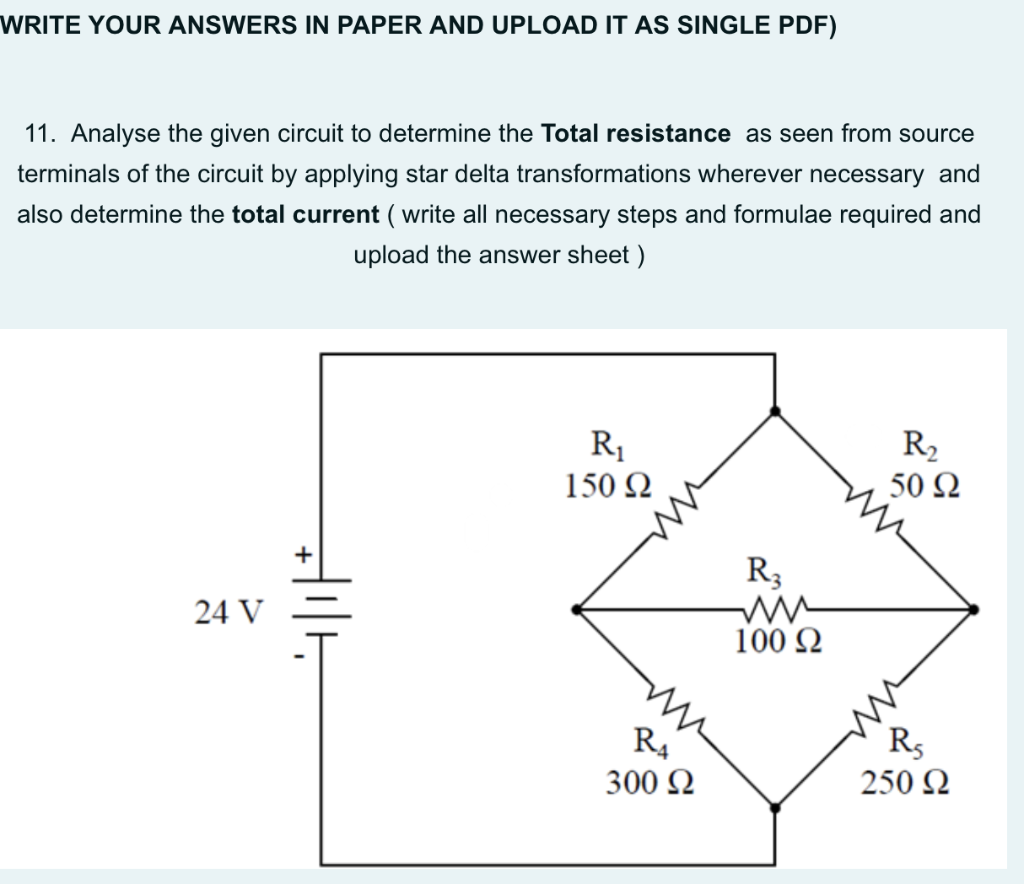

WRITE YOUR ANSWERS IN PAPER AND UPLOAD IT AS SINGLE PDF) 11. Analyse the given circuit to determine the Total resistance as seen from source terminals of the circuit by applying star delta transformations wherever necessary and also determine the total current ( write all necessary steps and formulae required and upload the answer sheet) R1 150 22 R2 50 22 ии. + 24 V 土二丁 Rz w 100 22 m RA 300 92 RS 250 22
