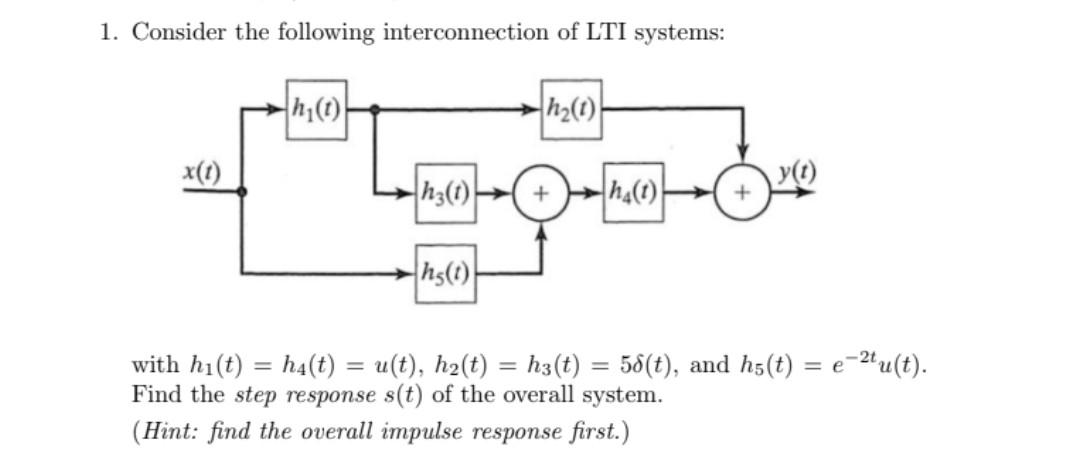

1 Consider The Following Interconnection Of Lti Systems Ht Hotor H2 X T Y T Hz T Halt Hs E E 2u T Wi 1 (33.48 KiB) Viewed 51 times
First find impulse response then step response
thanks
1. Consider the following interconnection of LTI systems: ht) -hotor h2() x(t) y(t) hz(t) + halt) hs() = = e e-2u(t). with hi(t) = h4(t) = u(t), h2(t) = h3(t) = 58(t), and hs(t) Find the step response s(t) of the overall system. (Hint: find the overall impulse response first.)
