QUESTION I. KNOWLEDGE AND COMPREHENSION (3 x 10 marks= 30 marks) DIRECTIONS: Draw the following sinusoidal waveforms: 1.

Post by answerhappygod »

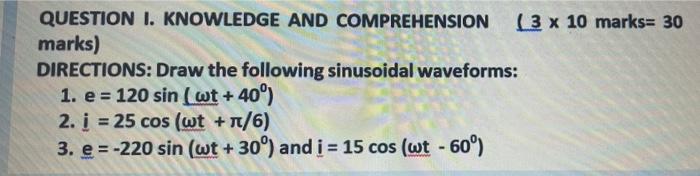

Question I Knowledge And Comprehension 3 X 10 Marks 30 Marks Directions Draw The Following Sinusoidal Waveforms 1 1
Question I Knowledge And Comprehension 3 X 10 Marks 30 Marks Directions Draw The Following Sinusoidal Waveforms 1 1 (23.61 KiB) Viewed 45 times
QUESTION I. KNOWLEDGE AND COMPREHENSION (3 x 10 marks= 30 marks) DIRECTIONS: Draw the following sinusoidal waveforms: 1. e = 120 sin ( wt+40°) 2. i = 25 cos (wt +T/6) 3. e=-220 sin (wt + 30°) and i = 15 cos (wt - 60°)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
