: QII. APPLICATION (PROBLEM SOLVING) (2x 25 marks = 50marks) Solve the following problems completely. Draw the equivalen

Post by answerhappygod »

Qii Application Problem Solving 2x 25 Marks 50marks Solve The Following Problems Completely Draw The Equivalen 1
Qii Application Problem Solving 2x 25 Marks 50marks Solve The Following Problems Completely Draw The Equivalen 1 (46.96 KiB) Viewed 34 times

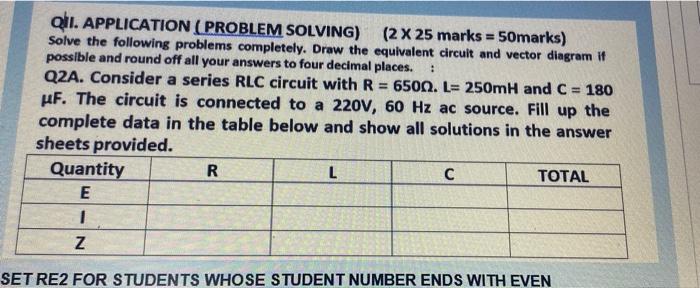

: QII. APPLICATION (PROBLEM SOLVING) (2x 25 marks = 50marks) Solve the following problems completely. Draw the equivalent circuit and vector diagram if possible and round off all your answers to four decimal places. Q2A. Consider a series RLC circuit with R = 6500. L=250mH and C = 180 uF. The circuit is connected to a 220V, 60 Hz ac source. Fill up the complete data in the table below and show all solutions in the answer sheets provided. Quantity R L с TOTAL E 1 Z SET RE2 FOR STUDENTS WHOSE STUDENT NUMBER ENDS WITH EVEN
