QUESTION2C. Given the combination circuit below, determine the total impedance and total current. (20 marks) L1 120m H R

Post by answerhappygod »

Question2c Given The Combination Circuit Below Determine The Total Impedance And Total Current 20 Marks L1 120m H R 1
Question2c Given The Combination Circuit Below Determine The Total Impedance And Total Current 20 Marks L1 120m H R 1 (14.94 KiB) Viewed 22 times

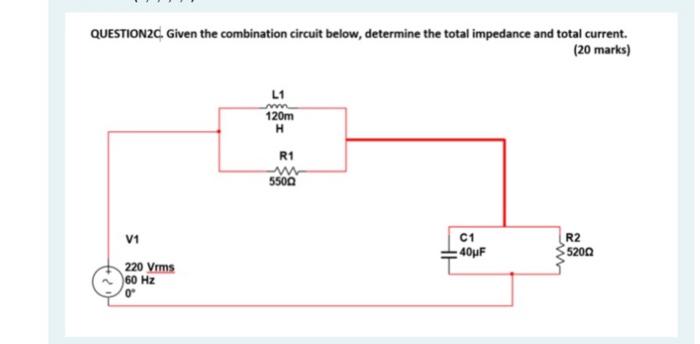

QUESTION2C. Given the combination circuit below, determine the total impedance and total current. (20 marks) L1 120m H R1 5500 C1 40F + R2 5200 V1 220 Vrms 60 Hz 09
