- Blade tip Rodius at blade tlp me -Blades Blade length Blade root Rotor disc Radius at blade bare for root) 76 Rotation

Post by answerhappygod »

Blade Tip Rodius At Blade Tlp Me Blades Blade Length Blade Root Rotor Disc Radius At Blade Bare For Root 76 Rotation 1
Blade Tip Rodius At Blade Tlp Me Blades Blade Length Blade Root Rotor Disc Radius At Blade Bare For Root 76 Rotation 1 (29.7 KiB) Viewed 44 times

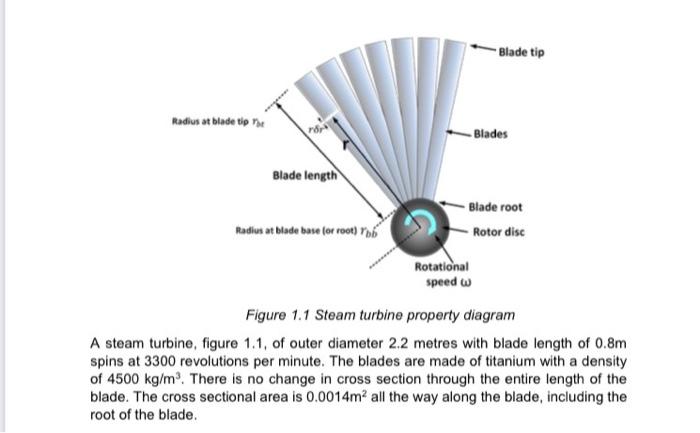

- Blade tip Rodius at blade tlp me -Blades Blade length Blade root Rotor disc Radius at blade bare for root) 76 Rotational speed w Figure 1.1 Steam turbine property diagram A steam turbine, figure 1.1, of outer diameter 2.2 metres with blade length of 0.8m spins at 3300 revolutions per minute. The blades are made of titanium with a density of 4500 kg/m? There is no change in cross section through the entire length of the blade. The cross sectional area is 0.0014m2 all the way along the blade, including the root of the blade.
