Microprocessor 8086 with basic interfaces Bus EPROM 1- Complete the dash BOX using the necessary buffers: 244 and 245 an

Post by answerhappygod »

Microprocessor 8086 With Basic Interfaces Bus Eprom 1 Complete The Dash Box Using The Necessary Buffers 244 And 245 An 1
Microprocessor 8086 With Basic Interfaces Bus Eprom 1 Complete The Dash Box Using The Necessary Buffers 244 And 245 An 1 (75.74 KiB) Viewed 38 times

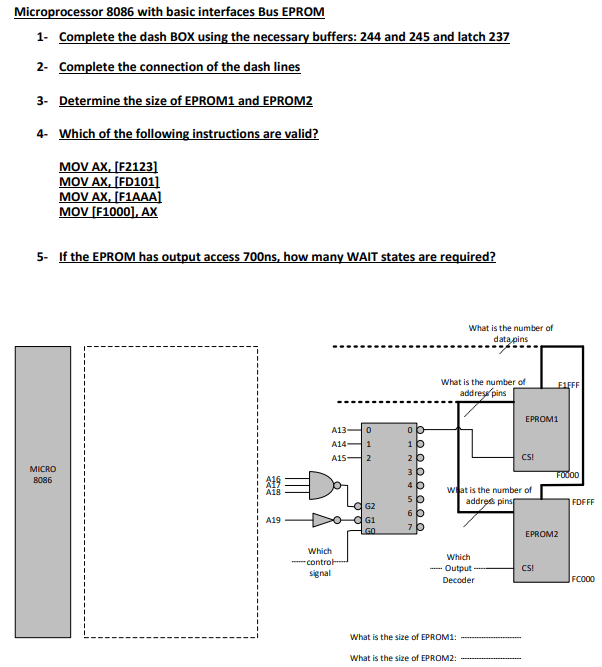

Microprocessor 8086 with basic interfaces Bus EPROM 1- Complete the dash BOX using the necessary buffers: 244 and 245 and latch 237 2- Complete the connection of the dash lines 3- Determine the size of EPROM1 and EPROM2 4- Which of the following instructions are valid? MOV AX, [F2123] MOV AX, [FD1011 MOV AX, (F1AAA) MOV (F1000), AX 5- If the EPROM has output access 700ns, how many WAIT states are required? What is the number of data pins What is the number of address pins E1FFF EPROM A13 0 A14 1 A152 CS! MICRO 8086 ob 1b 25 30 4b 5b 6b 75 FOOOO wifat is the number of address pins G2 FDFFF A19 G1 GO EPROM2 Which control Signal Which ----- Output Decoder CS! FC000 What is the size of EPROM1: What is the size of EPROM2:
