B Shown In Figure 4 B Is A Two Port Circuit Of Symmetrical Lattice Z Zd Z Z Figure 40 I Determine 27 And 222 4 M 1 (27.21 KiB) Viewed 39 times
B Shown In Figure 4 B Is A Two Port Circuit Of Symmetrical Lattice Z Zd Z Z Figure 40 I Determine 27 And 222 4 M 2 (27.21 KiB) Viewed 39 times

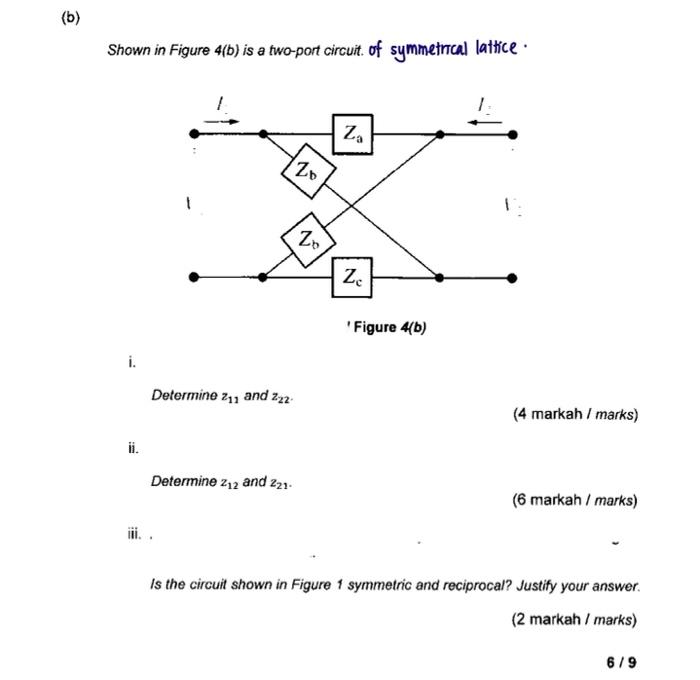

(b) Shown in Figure 4(b) is a two-port circuit of symmetrical lattice Z ZD Z Z 'Figure 40) i. Determine 27, and 222 (4 markah 1 marks) ii. Determine 212 and 221 (6 markah 1 marks) Is the circuit shown in Figure 1 symmetric and reciprocal? Justify your answer. (2 markah 1 marks) 6/9
