The uncharged capacitor in the given circuit is initially connected to terminal d of the three- position switch. Ale = 0

[answerhappygod]

The Uncharged Capacitor In The Given Circuit Is Initially Connected To Terminal D Of The Three Position Switch Ale 0 1 (48.74 KiB) Viewed 41 times

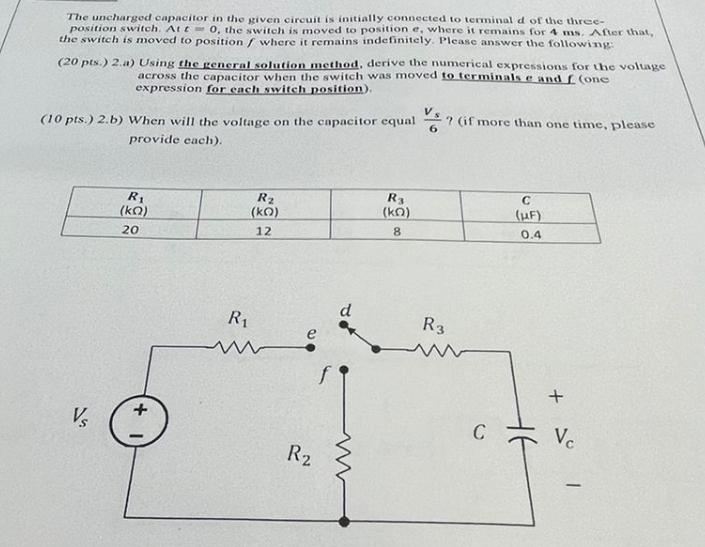

The uncharged capacitor in the given circuit is initially connected to terminal d of the three- position switch. Ale = 0, the switch is moved to position e, where it remains for 4 ms. After that, the switch is moved to position where it remains indefinitely. Please answer the following (20 pts) 2...) Using the reneral solution method, derive the numerical expressions for the volunge across the capacitor when the switch was moved to terminalse and (one expression for each switch position) (10 pts.) 2.b) When will the voltage on the capacitor equal ? (if more than one time, please provide each). R (ko) 20 R2 (KO) 12 R3 (ko) 8 С (F) 0.4 d RI R3 e mi + Vs + + с HE Vc R2 w
