The first two questions are from the examples questions for modelling using transfer function. Change the question to be

[answerhappygod]

The First Two Questions Are From The Examples Questions For Modelling Using Transfer Function Change The Question To Be 1 (27.41 KiB) Viewed 111 times

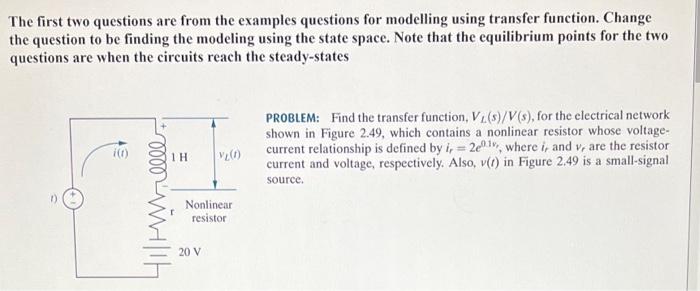

The first two questions are from the examples questions for modelling using transfer function. Change the question to be finding the modeling using the state space. Note that the equilibrium points for the two questions are when the circuits reach the steady-states PROBLEM: Find the transfer function, V.()/V(s), for the electrical network shown in Figure 2.49, which contains a nonlinear resistor whose voltage- current relationship is defined by i, = 2011, where i, and v, are the resistor current and voltage, respectively. Also, v() in Figure 2.49 is a small-signal source 1H ve (0) D 0000 lih Nonlinear resistor 20 V
