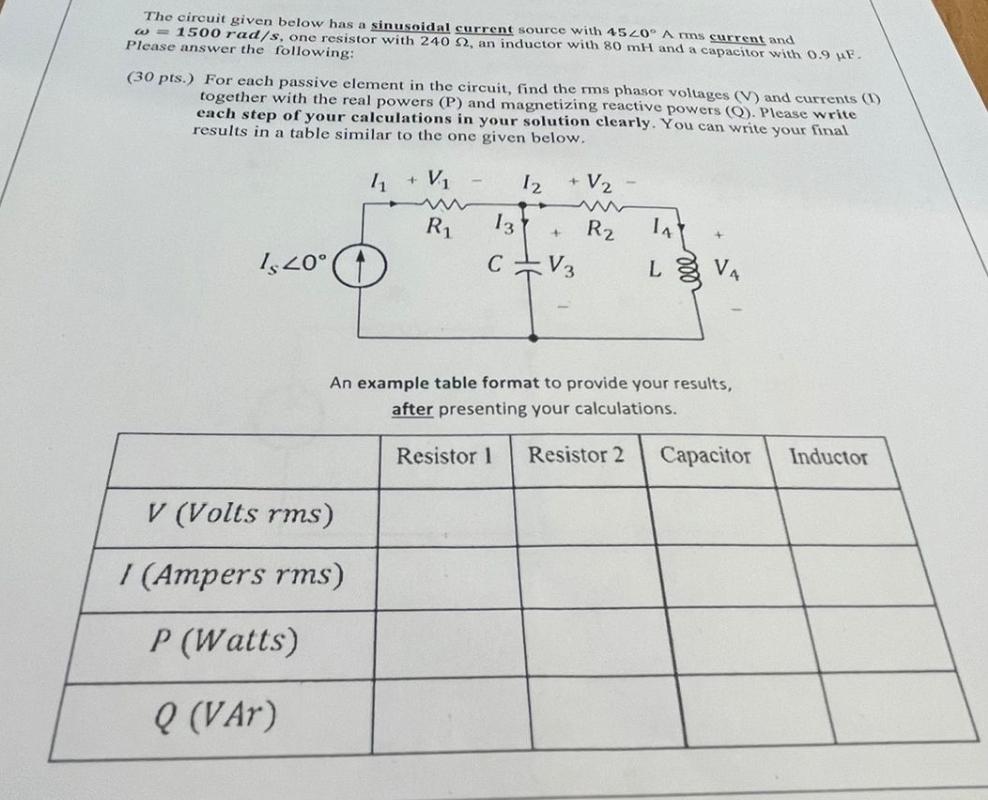

The circuit given below has a sinusoidal current source with 45 20° Arms current and w = 1500 rad/s, one resistor with 240 2. an inductor with 80 mH and a capacitor with 0.9 HF. Please answer the following: (30 pts.) For each passive element in the circuit, find the rms phasor voltages (V) and currents (1) together with the real powers (P) and magnetizing reactive powers (Q). Please write each step of your calculations in your solution clearly. You can write your final results in a table similar to the one given below. 1 V w R1 12 + V2 W 13 Rz C +13 1 + 1s 20° L VA An example table format to provide your results, after presenting your calculations. Resistor 1 Resistor 2 Capacitor Inductor V (Volts rms) I (Ampers rms) P (Watts) Q (VAT)
