Figure 1 in below show the same cell, terminated with different load. (1) Determine the open circuit voltage, internal r

[answerhappygod]

Figure 1 In Below Show The Same Cell Terminated With Different Load 1 Determine The Open Circuit Voltage Internal R 1 (62.48 KiB) Viewed 42 times

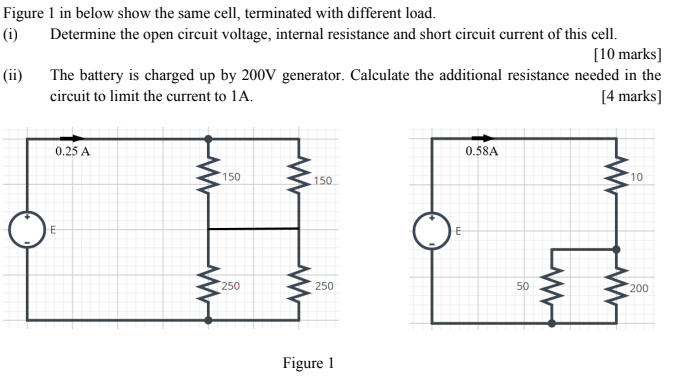

Figure 1 in below show the same cell, terminated with different load. (1) Determine the open circuit voltage, internal resistance and short circuit current of this cell. [10 marks] The battery is charged up by 2007 generator. Calculate the additional resistance needed in the circuit to limit the current to 1A. [4 marks] (ii) 0.25 A 0.58A 150 150 10 E E 250 w 250 50 w 200 Figure 1
