A separately excited DC machine has the following plate data: Von = 350 V, lan = 70 A, 7 = 3000 rpm, Vexto = 350 V The a

Post by answerhappygod »

A Separately Excited Dc Machine Has The Following Plate Data Von 350 V Lan 70 A 7 3000 Rpm Vexto 350 V The A 1
A Separately Excited Dc Machine Has The Following Plate Data Von 350 V Lan 70 A 7 3000 Rpm Vexto 350 V The A 1 (189.4 KiB) Viewed 70 times

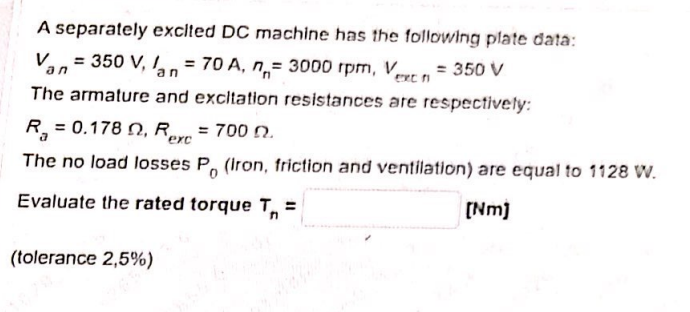

A separately excited DC machine has the following plate data: Von = 350 V, lan = 70 A, 7 = 3000 rpm, Vexto = 350 V The armature and excitation resistances are respectively: R = 0.178 12, Rerc = 700 12 The no load losses P. (Iron, friction and ventilation) are equal to 1128 W. Evaluate the rated torque T = [Nm] (tolerance 2,5%)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
