A three phase transformer is given; nameplate data: So = 100 KVA V1, V2n = 22KV / 400V, 50 Hz V = 5.0% р. = 2.5% 10% = 2

Post by answerhappygod »

1
1 (255.4 KiB) Viewed 67 times

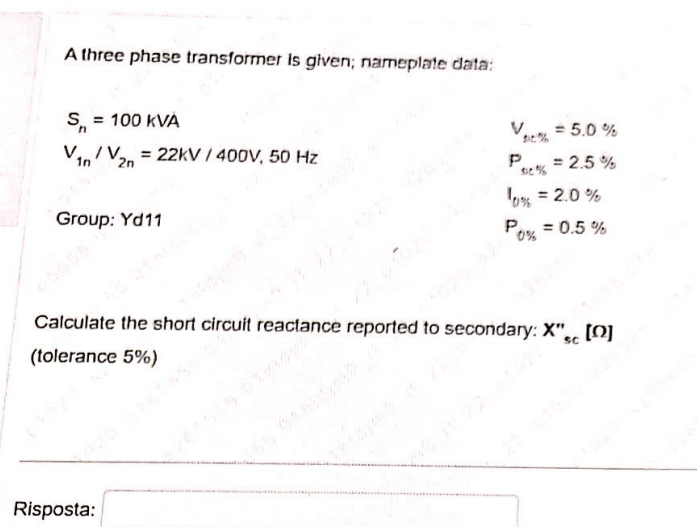

A three phase transformer is given; nameplate data: So = 100 KVA V1, V2n = 22KV / 400V, 50 Hz V = 5.0% р. = 2.5% 10% = 2.0% 0% = 0.5% Group: Yd11 Calculate the short circuit reactance reported to secondary: X". (O) (tolerance 5%) Risposta:
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
