Given is the following two-pole. The quantities R, L and C are given as well as w >O and L >CR2 C AO OB L R Determine th

Post by answerhappygod »

Given Is The Following Two Pole The Quantities R L And C Are Given As Well As W O And L Cr2 C Ao Ob L R Determine Th 1
Given Is The Following Two Pole The Quantities R L And C Are Given As Well As W O And L Cr2 C Ao Ob L R Determine Th 1 (36.48 KiB) Viewed 77 times

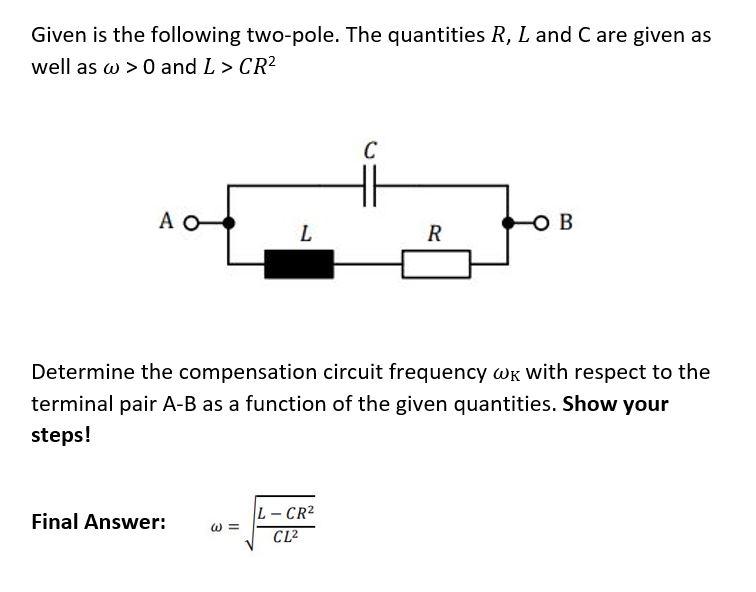

Given is the following two-pole. The quantities R, L and C are given as well as w >O and L >CR2 C AO OB L R Determine the compensation circuit frequency wr with respect to the terminal pair A-B as a function of the given quantities. Show your steps! Final Answer: w = L-CR² CL2
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
