Also The Measured Voltages In The Circuit Shown In Fig 12 A Are E 1 To 2 120 V E5 To 6 120 V E2 To 6 0 V Then W 1 (153.57 KiB) Viewed 49 times

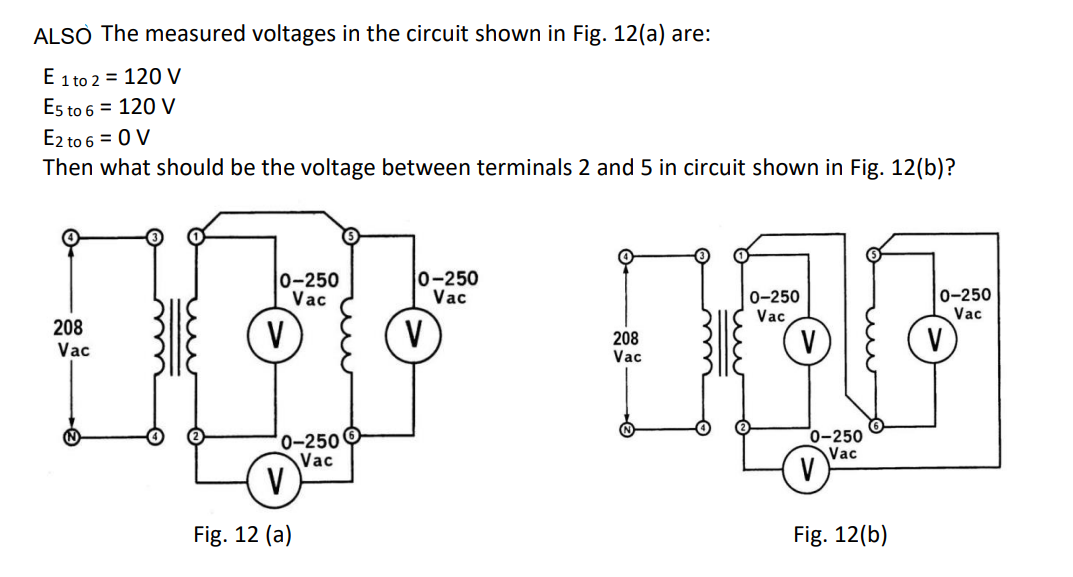

ALSO The measured voltages in the circuit shown in Fig. 12(a) are: E 1 to 2 = 120 V E5 to 6 = 120 V E2 to 6 = 0 V Then what should be the voltage between terminals 2 and 5 in circuit shown in Fig. 12(b)? 0-250 Vac V 0-250 Vac V 0-250 Vac 0-250 Vac 208 Vac DELF 208 Vac 0-250 Vac 0-250 Vac V V Fig. 12 (a) Fig. 12(b)
1. Using vector diagram show and briefly explain the effect of supply voltage changes on a synchronous motor considering constant load and constant excitation. (12)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
