Using the nominal resistor values in the circuit diagram, use mesh analysis to solve for mesh currents I1, I2, and I3 in

[answerhappygod]

Using The Nominal Resistor Values In The Circuit Diagram Use Mesh Analysis To Solve For Mesh Currents I1 I2 And I3 In 1 (62.62 KiB) Viewed 92 times

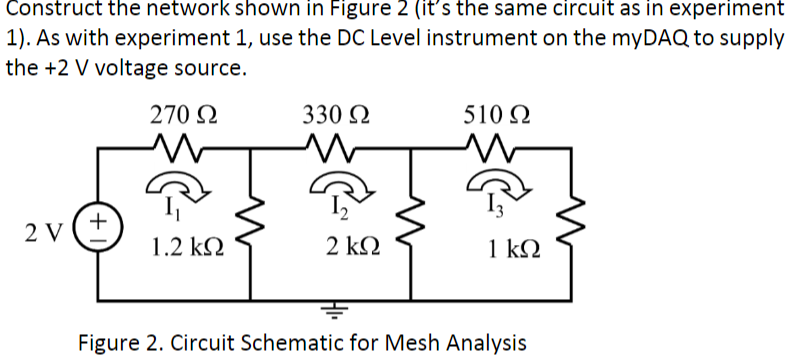

Construct the network shown in Figure 2 (it's the same circuit as in experiment 1). As with experiment 1, use the DC Level instrument on the myDAQ to supply the +2 V voltage source. 270 22 330 22 510 Ω + 2 V 1.2 k22 2 k22 1 k 2 Figure 2. Circuit Schematic for Mesh Analysis
