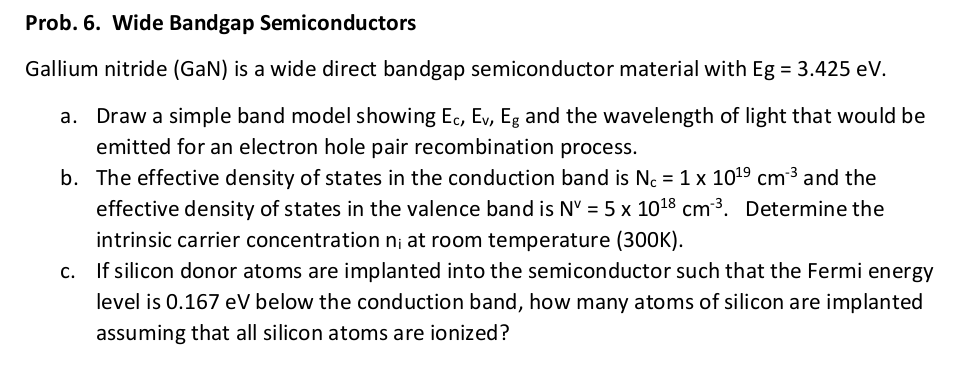

Prob 6 Wide Bandgap Semiconductors Gallium Nitride Gan Is A Wide Direct Bandgap Semiconductor Material With Eg 3 4 1 (55.66 KiB) Viewed 55 times

Prob. 6. Wide Bandgap Semiconductors Gallium nitride (GaN) is a wide direct bandgap semiconductor material with Eg = 3.425 eV. a. Draw a simple band model showing Ec, Ev, Eg and the wavelength of light that would be emitted for an electron hole pair recombination process. b. The effective density of states in the conduction band is No = 1 x 1019 cm 3 and the effective density of states in the valence band is N' = 5 x 1018 cm3. Determine the intrinsic carrier concentration n; at room temperature (300K). C. If silicon donor atoms are implanted into the semiconductor such that the Fermi energy level is 0.167 eV below the conduction band, how many atoms of silicon are implanted assuming that all silicon atoms are ionized?
