lab Assignment: 1. Design a logic circuit to produce HIGH output only if the input, represented by a 4-bit binary number

Post by answerhappygod »

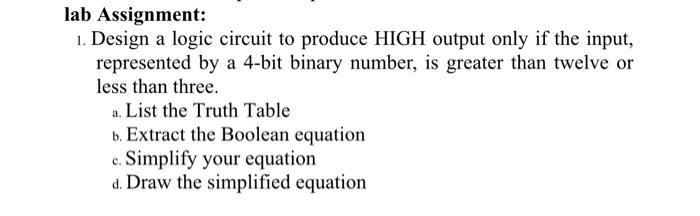

Lab Assignment 1 Design A Logic Circuit To Produce High Output Only If The Input Represented By A 4 Bit Binary Number 1
Lab Assignment 1 Design A Logic Circuit To Produce High Output Only If The Input Represented By A 4 Bit Binary Number 1 (20.91 KiB) Viewed 60 times
lab Assignment: 1. Design a logic circuit to produce HIGH output only if the input, represented by a 4-bit binary number, is greater than twelve or less than three. a. List the Truth Table b. Extract the Boolean equation c. Simplify your equation d. Draw the simplified equation
