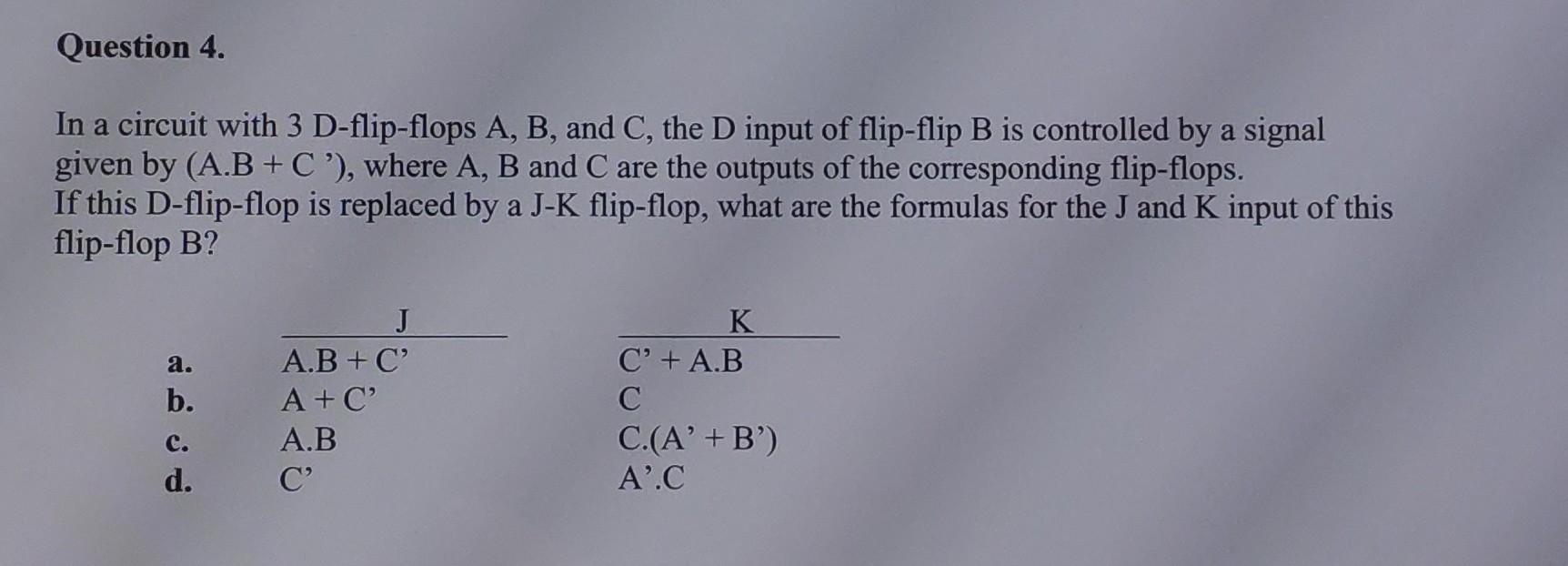

Question 4 In A Circuit With 3 D Flip Flops A B And C The D Input Of Flip Flip B Is Controlled By A Signal Given By 1 (71.08 KiB) Viewed 36 times
How to do this without just trying every answer given. Question 4. In a circuit with 3 D-flip-flops A, B, and C, the D input of flip-flip B is controlled by a signal given by (A.B + C '), where A, B and C are the outputs of the corresponding flip-flops. If this D-flip-flop is replaced by a J-K flip-flop, what are the formulas for the J and K input of this flip-flop B? a. b. J A.B + C' A + C' A.B K C' + A.B С C.(A' +B) A'.C C. d.
