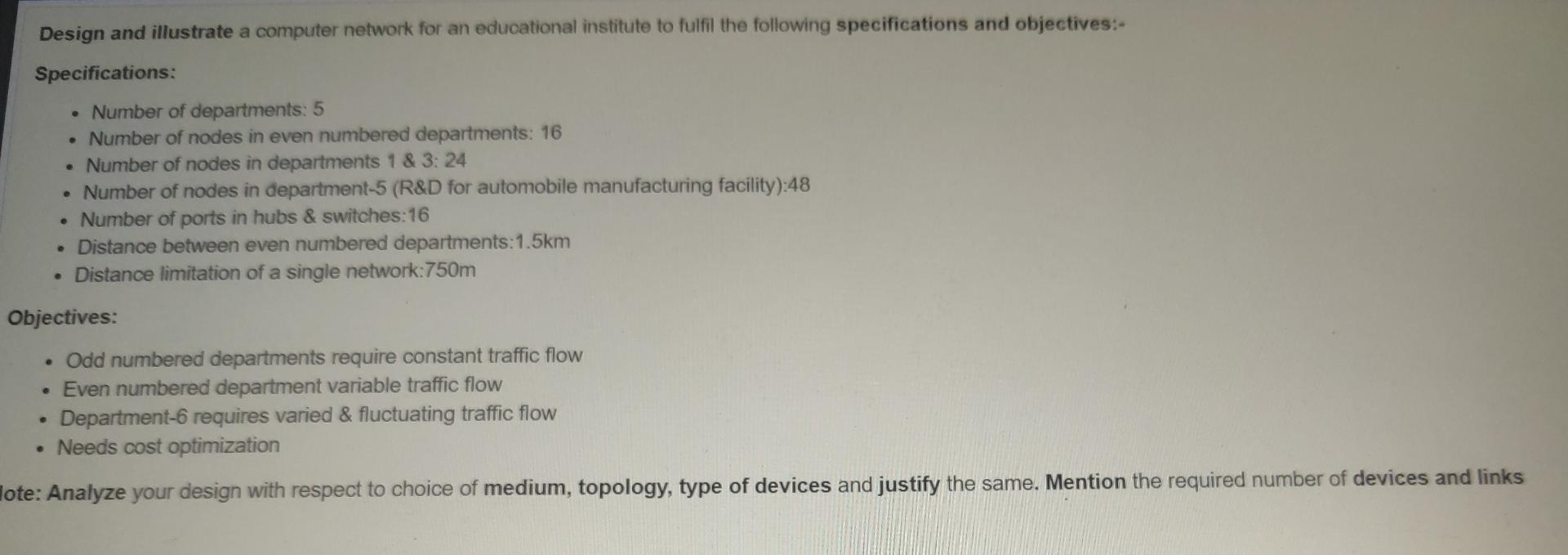

Design and illustrate a computer network for an educational institute to fulfil the following specifications and objectives:- Specifications: • Number of departments: 5 • Number of nodes in even numbered departments: 16 • Number of nodes in departments 1 & 3: 24 • Number of nodes in department-5 (R&D for automobile manufacturing facility):48 Number of ports in hubs & switches:16 • Distance between even numbered departments:1.5km • Distance limitation of a single network:750m Objectives: • Odd numbered departments require constant traffic flow • Even numbered department variable traffic flow Department-6 requires varied & fluctuating traffic flow • Needs cost optimization . Hote: Analyze your design with respect to choice of medium, topology, type of devices and justify the same. Mention the required number of devices and links
