Question (3) Calculate the nominal moment strength (Mn) of the cross-sections (a) and (b) shown in Figure 3 below: 1) by

[answerhappygod]

Question 3 Calculate The Nominal Moment Strength Mn Of The Cross Sections A And B Shown In Figure 3 Below 1 By 1 (12.55 KiB) Viewed 67 times

Question 3 Calculate The Nominal Moment Strength Mn Of The Cross Sections A And B Shown In Figure 3 Below 1 By 2 (271.32 KiB) Viewed 67 times

Question 3 Calculate The Nominal Moment Strength Mn Of The Cross Sections A And B Shown In Figure 3 Below 1 By 3 (195.95 KiB) Viewed 67 times

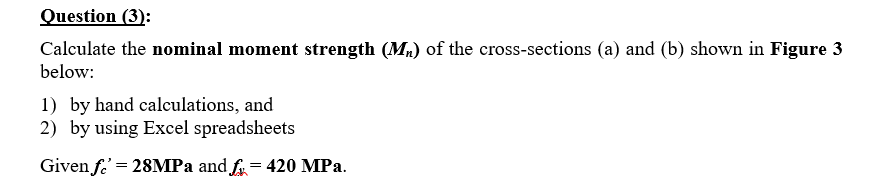

Question (3) Calculate the nominal moment strength (Mn) of the cross-sections (a) and (b) shown in Figure 3 below: 1) by hand calculations, and 2) by using Excel spreadsheets Given fi' = 28MPa and fix = 420 MPa. = =

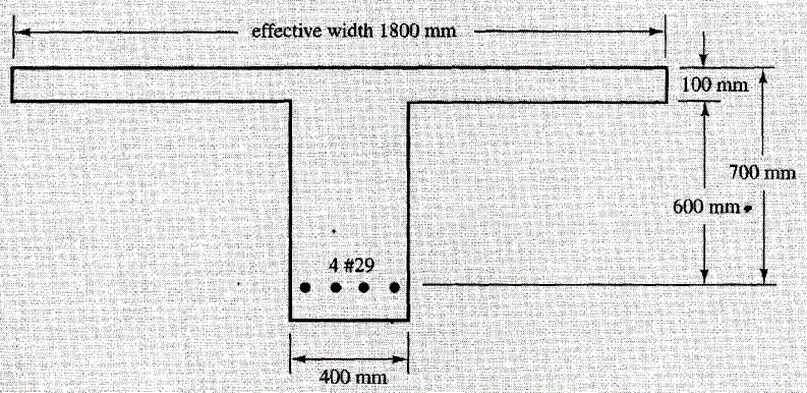

effective width 1800 mm 100 mm 700 mm 600 mm 4 #29 400 mm

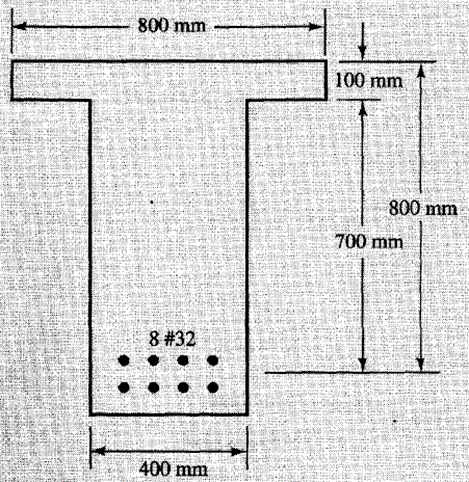

800 mm 100 mm 800 mm 700 mm 8 #32 400 mm
