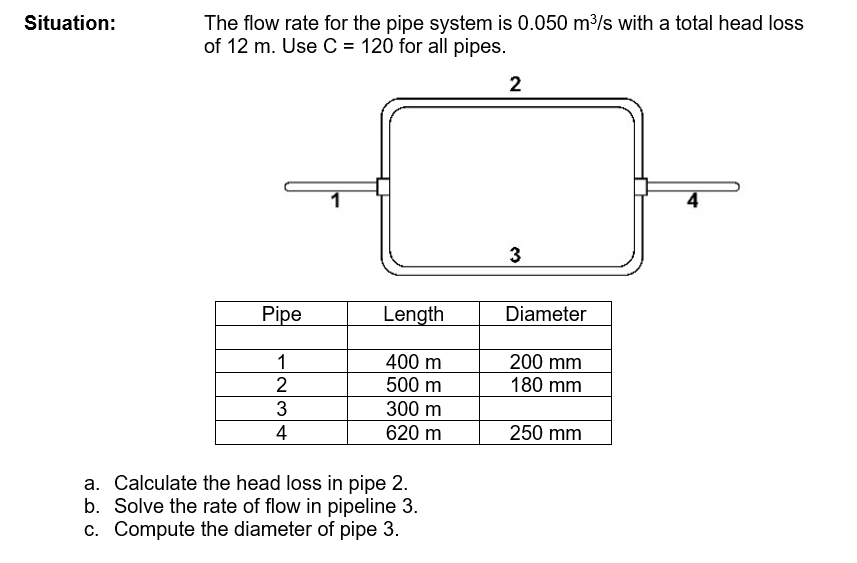

Situation: The flow rate for the pipe system is 0.050 m3/s with a total head loss of 12 m. Use C = 120 for all pipes. 2

[answerhappygod]

Situation The Flow Rate For The Pipe System Is 0 050 M3 S With A Total Head Loss Of 12 M Use C 120 For All Pipes 2 1 (32.38 KiB) Viewed 77 times

Situation: The flow rate for the pipe system is 0.050 m3/s with a total head loss of 12 m. Use C = 120 for all pipes. 2 4 3 Pipe Length Diameter 200 mm 180 mm 1 2 3 4 400 m 500 m 300 m 620 m 250 mm a. Calculate the head loss in pipe 2. b. Solve the rate of flow in pipeline 3. c. Compute the diameter of pipe 3.
