For the truss shown below, determine the force in each member and state whether the members are in compression or tensio

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

For the truss shown below, determine the force in each member and state whether the members are in compression or tensio

Post by answerhappygod »

For The Truss Shown Below Determine The Force In Each Member And State Whether The Members Are In Compression Or Tensio 1
For The Truss Shown Below Determine The Force In Each Member And State Whether The Members Are In Compression Or Tensio 1 (52.69 KiB) Viewed 65 times

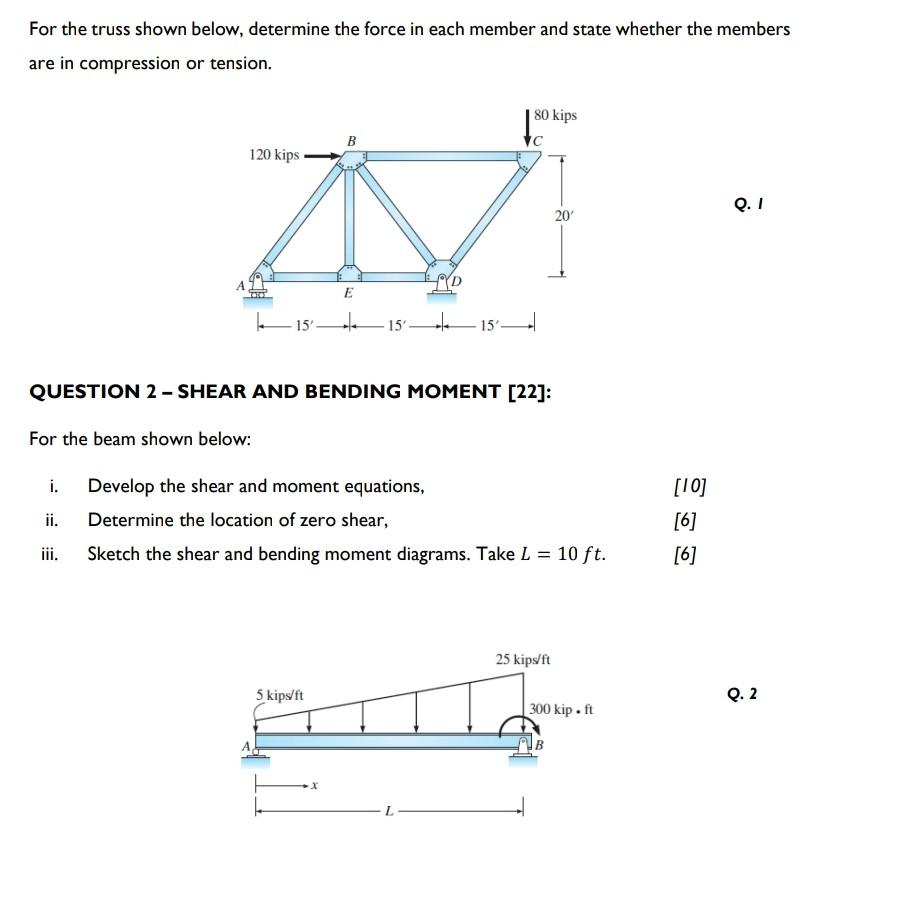

For the truss shown below, determine the force in each member and state whether the members are in compression or tension. | 80 kips B 120 kips M Q.1 20 E 15 - 15 15 QUESTION 2 - SHEAR AND BENDING MOMENT [22]: For the beam shown below: i. ii. Develop the shear and moment equations, Determine the location of zero shear, Sketch the shear and bending moment diagrams. Take L = 10 ft. [10] [6] [6] = 25 kips/ft 5 kips/ft Q. 2 300 kip.it x
