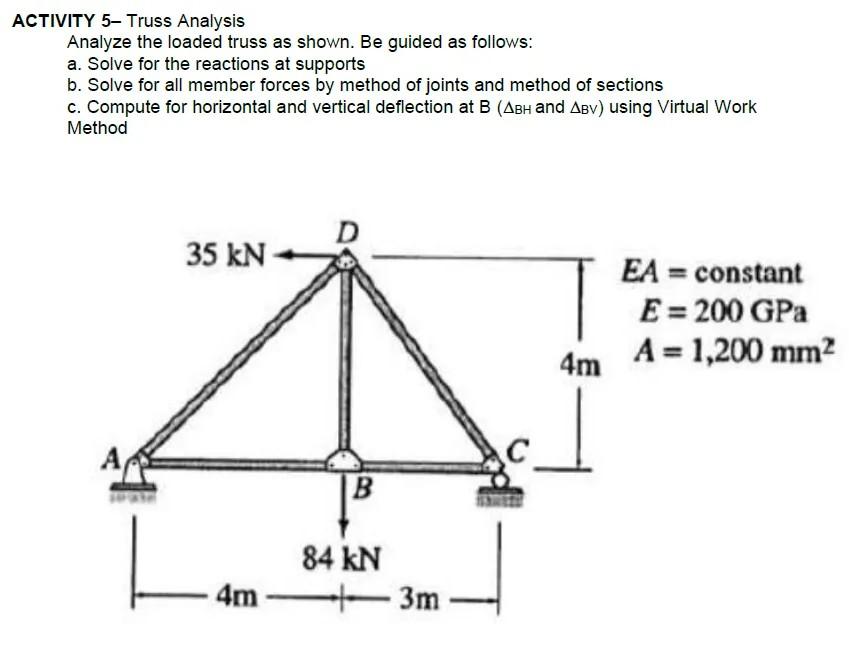

ACTIVITY 5– Truss Analysis Analyze the loaded truss as shown. Be guided as follows: a. Solve for the reactions at supports b. Solve for all member forces by method of joints and method of sections c. Compute for horizontal and vertical deflection at B (ABH and ABv) using Virtual Work Method 35 kN EA = constant E = 200 GPA 4m A= 1,200 mm B 84 kN -3m- 4m
