2) Given the following properties of a T-beam: use the 2015 NSCP. Effective flange width, bf 1200 mm Width of web, bw =
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2) Given the following properties of a T-beam: use the 2015 NSCP. Effective flange width, bf 1200 mm Width of web, bw =

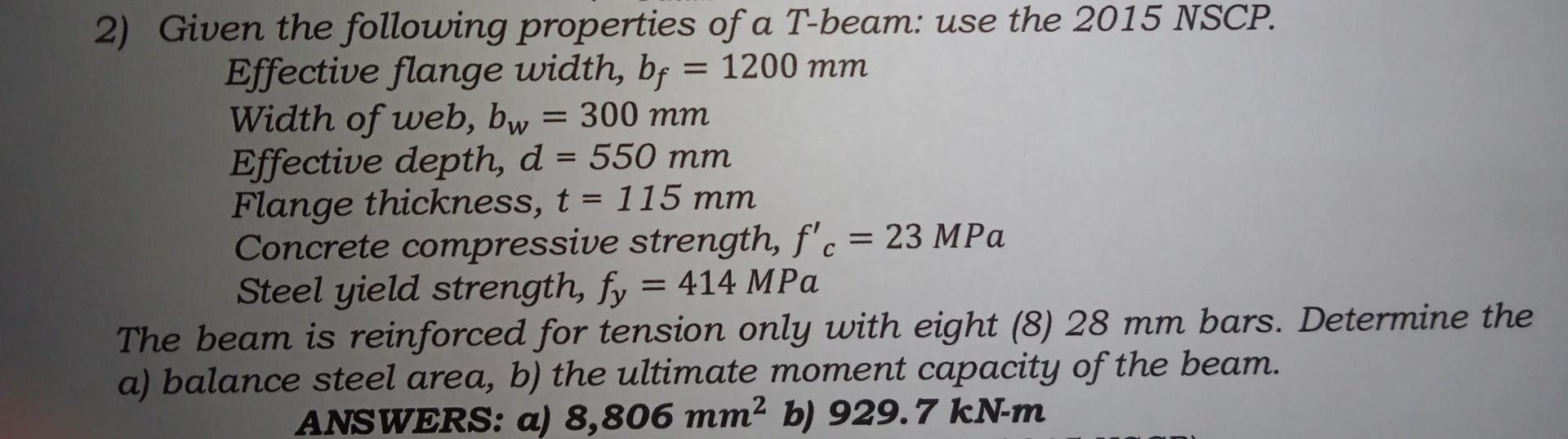

2) Given the following properties of a T-beam: use the 2015 NSCP. Effective flange width, bf 1200 mm Width of web, bw = 300 mm Effective depth, d = 550 mm Flange thickness, t = 115 mm Concrete compressive strength, f'c = 23 MPa Steel yield strength, fy = 414 MPa The beam is reinforced for tension only with eight (8) 28 mm bars. Determine the a) balance steel area, b) the ultimate moment capacity of the beam. ANSWERS: a) 8,806 mm2 b) 929.7 kN-m
