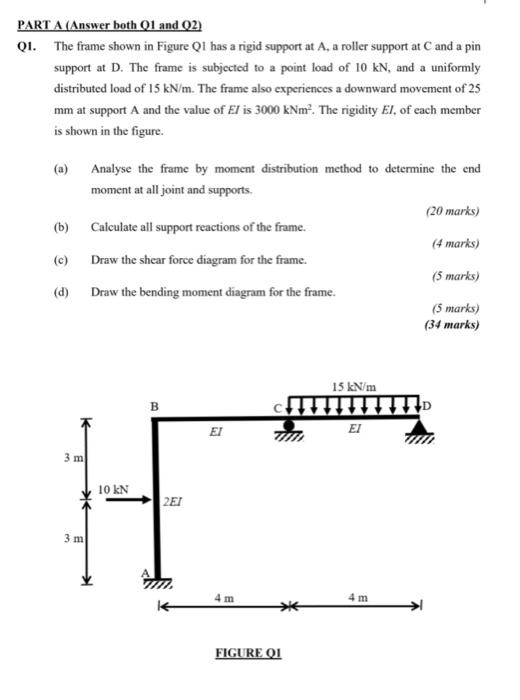

PART A (Answer both Q1 and Q2) Q1. The frame shown in Figure QI has a rigid support at A, a roller support at C and a pin support at D. The frame is subjected to a point load of 10 kN, and a uniformly distributed load of 15 kN/m. The frame also experiences a downward movement of 25 mm at support A and the value of El is 3000 kNm". The rigidity El. of each member is shown in the figure (a) Analyse the frame by moment distribution method to determine the end moment at all joint and supports (20 marks) (b) Calculate all support reactions of the frame. (4 marks) (c) Draw the shear force diagram for the frame. (5 marks) (d) Draw the bending moment diagram for the frame. (5 marks) (34 marks) 15 kN/m B ΕΙ EI 3 ml 10 KN Y 2E1 3 m 4 m 4 m FIGURE Q1
