CVEN 213-Statics Spring 2022 Date: February 7, 2022 جامعة قطر Dept. of Civil and Arch. Engineering INSTRUCTOR V. PLEVRIS

[answerhappygod]

1 (191.94 KiB) Viewed 42 times

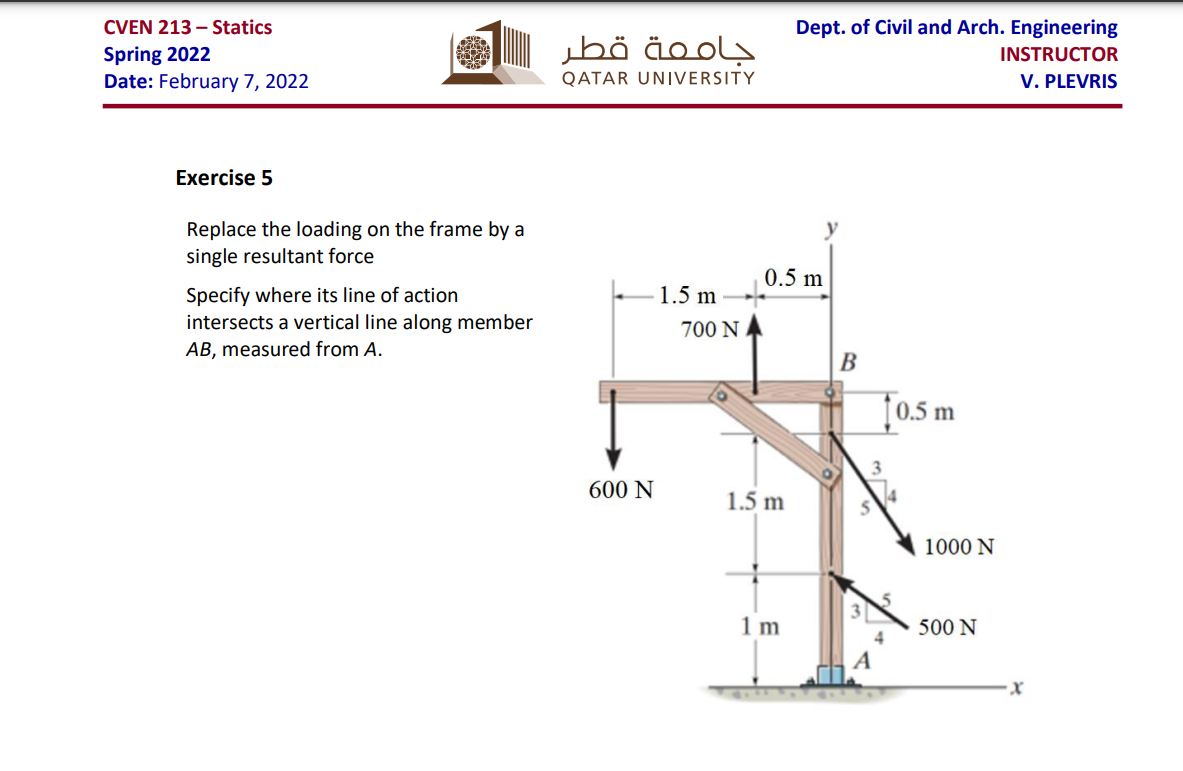

CVEN 213-Statics Spring 2022 Date: February 7, 2022 جامعة قطر Dept. of Civil and Arch. Engineering INSTRUCTOR V. PLEVRIS QATAR UNIVERSITY Exercise 5 0.5 m Replace the loading on the frame by a single resultant force Specify where its line of action intersects a vertical line along member AB, measured from A. 1.5 m 700 N B 10.5 m 600 N 1.5 m 1000 N 1 m 500 N Y
