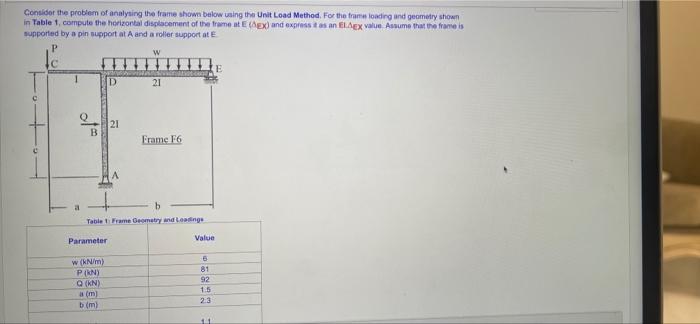

Consider the problem of analyting the frame shown below using the Unit Load Method. For the frame loading and geometry shown in Table 1, compute the horizontal displacement of the frame at Eex and express as an ex value Assume that the frames supported by a pin support at A and a roller supportate w D 21 c 21 B Frame FG A b Tablet Frame metry and leading Parameter Value w (Nm) PKN) (KN) am bim 5 81 92 15 23 11

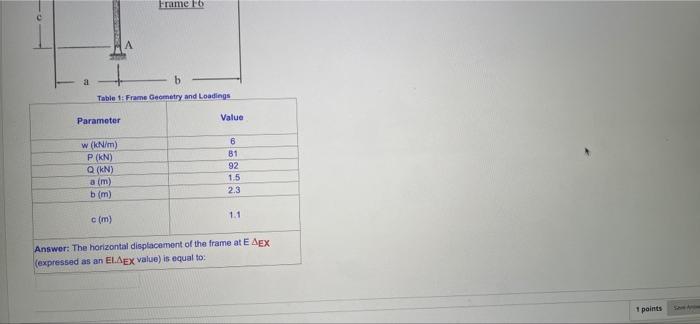

Frame to a b Table 1 Frame Geometry and Loadings Parameter Value w (kNim) P (N) Q(kN) a (m) b (m) 6 81 92 1.5 2.3 1.1 c (m) Answer: The horizontal displacement of the frame at E AEX (expressed as an ELAEX value) is equal to: 1 points
