3-18. The rigid beam is supported by a pin at C and an A992 steel guy wire AB of length 6 ft. If the wire has a diameter

Post by answerhappygod »

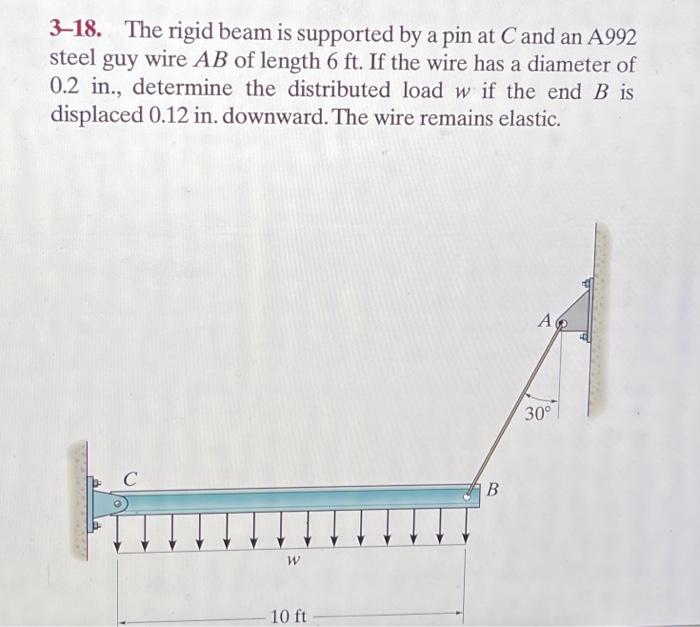

3 18 The Rigid Beam Is Supported By A Pin At C And An A992 Steel Guy Wire Ab Of Length 6 Ft If The Wire Has A Diameter 1
3 18 The Rigid Beam Is Supported By A Pin At C And An A992 Steel Guy Wire Ab Of Length 6 Ft If The Wire Has A Diameter 1 (43.39 KiB) Viewed 188 times
3-18. The rigid beam is supported by a pin at C and an A992 steel guy wire AB of length 6 ft. If the wire has a diameter of 0.2 in., determine the distributed load w if the end B is displaced 0.12 in. downward. The wire remains elastic. А. 30° С B w 10 ft
