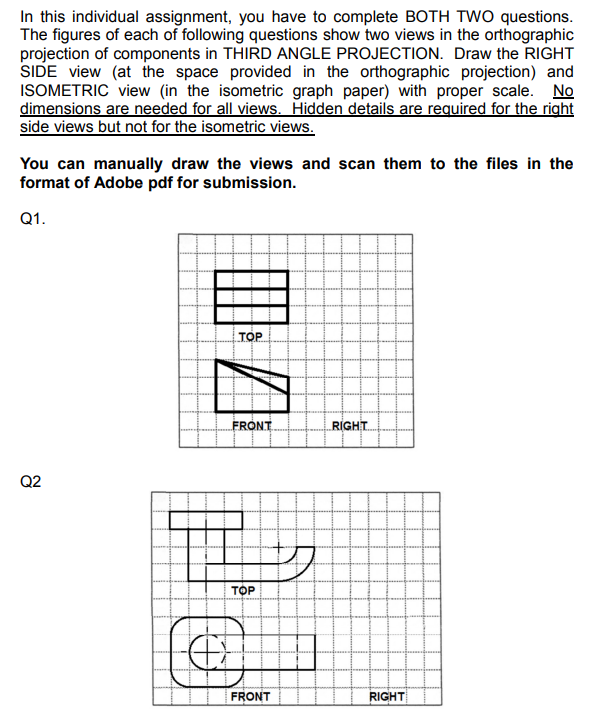

In this individual assignment, you have to complete BOTH TWO questions. The figures of each of following questions show two views in the orthographic projection of components in THIRD ANGLE PROJECTION. Draw the RIGHT SIDE view (at the space provided in the orthographic projection) and ISOMETRIC view (in the isometric graph paper) with proper scale. No dimensions are needed for all views. Hidden details are required for the right side views but not for the isometric views. You can manually draw the views and scan them to the files in the format of Adobe pdf for submission. Q1. TOP FRONT RIGHT Q2 TOP -6 FRONT RIGHT

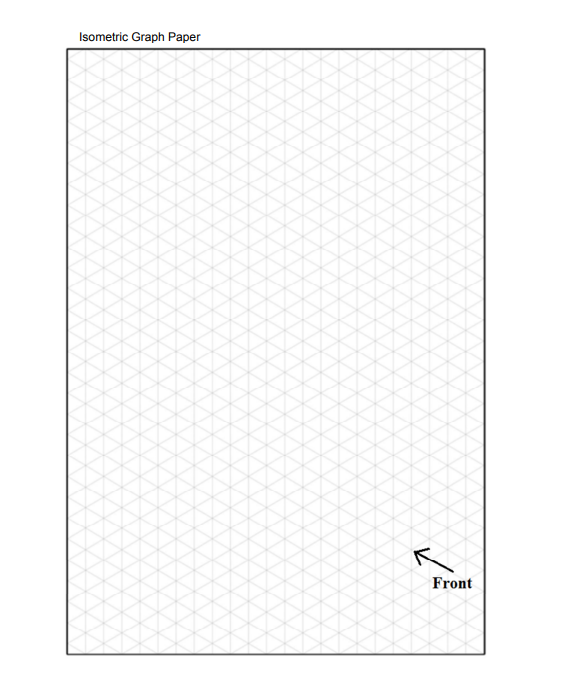

Isometric Graph Paper Front
