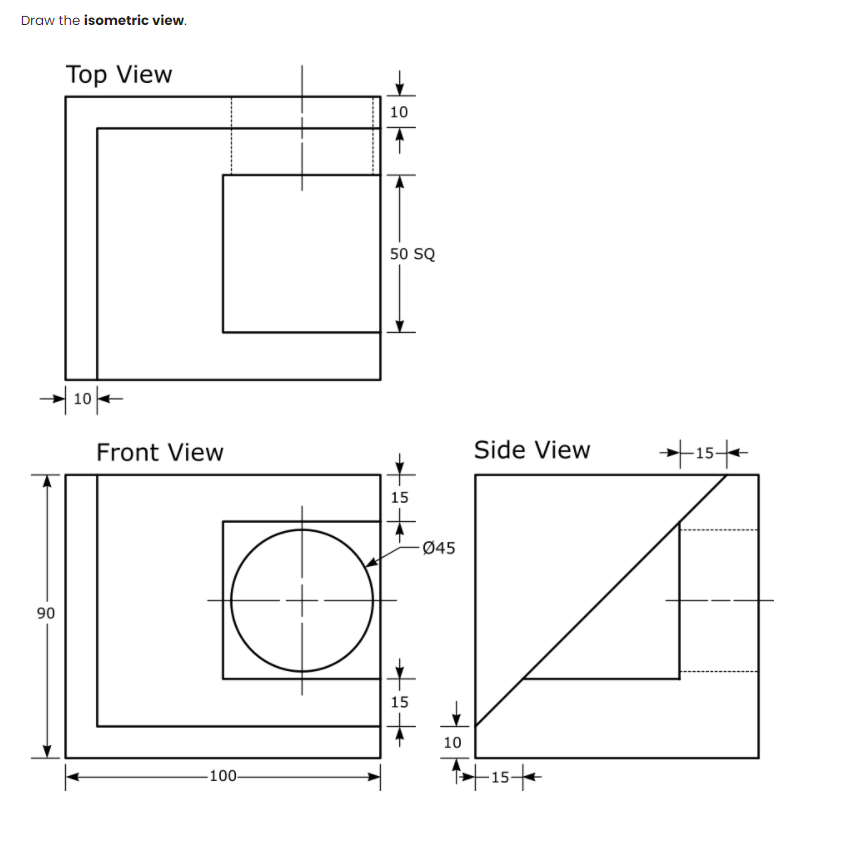

Draw the isometric view. Top View 10 T 50 SQ 1014 Front View Side View +1570 15 十+ -Ø45 90 D 15 10 100 7+15+
