Force Facts at point c on the bent pipe OABC. z z 50° 6.30 ft D 3.60 ft 40° A у F = (-6.21 – 4.25 + 5.2K) kips X B 3.60
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Force Facts at point c on the bent pipe OABC. z z 50° 6.30 ft D 3.60 ft 40° A у F = (-6.21 – 4.25 + 5.2K) kips X B 3.60

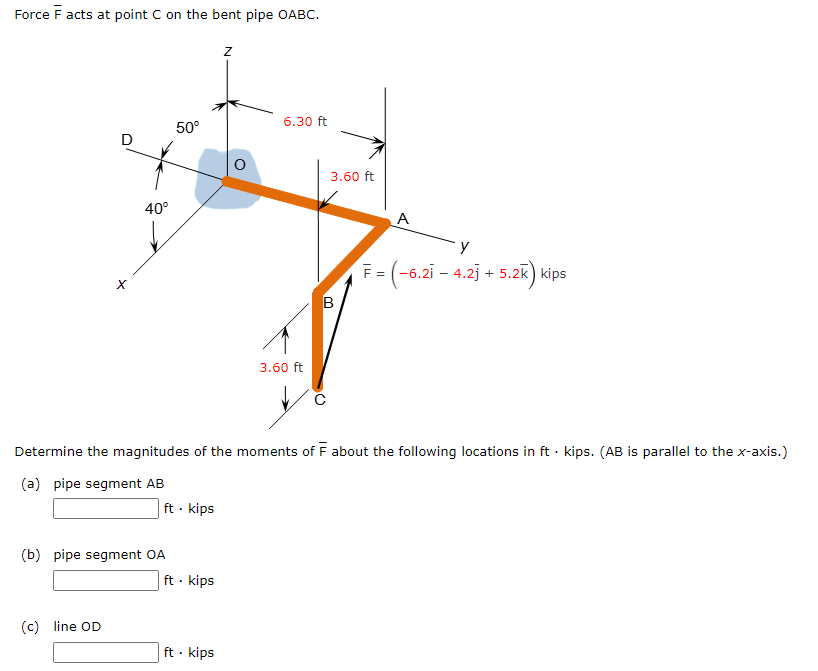

Force Facts at point c on the bent pipe OABC. z z 50° 6.30 ft D 3.60 ft 40° A у F = (-6.21 – 4.25 + 5.2K) kips X B 3.60 ft Determine the magnitudes of the moments of F about the following locations in ft. kips. (AB is parallel to the x-axis.) (a) pipe segment AB ft. kips (b) pipe segment OA ft. kips (c) line OD ft. kips
