1. For the soil profile shown in the figure below, determine: a. the Oz (total normal stress) at point A, and b. the o’z

[answerhappygod]

1 For The Soil Profile Shown In The Figure Below Determine A The Oz Total Normal Stress At Point A And B The O Z 1 (296.21 KiB) Viewed 62 times

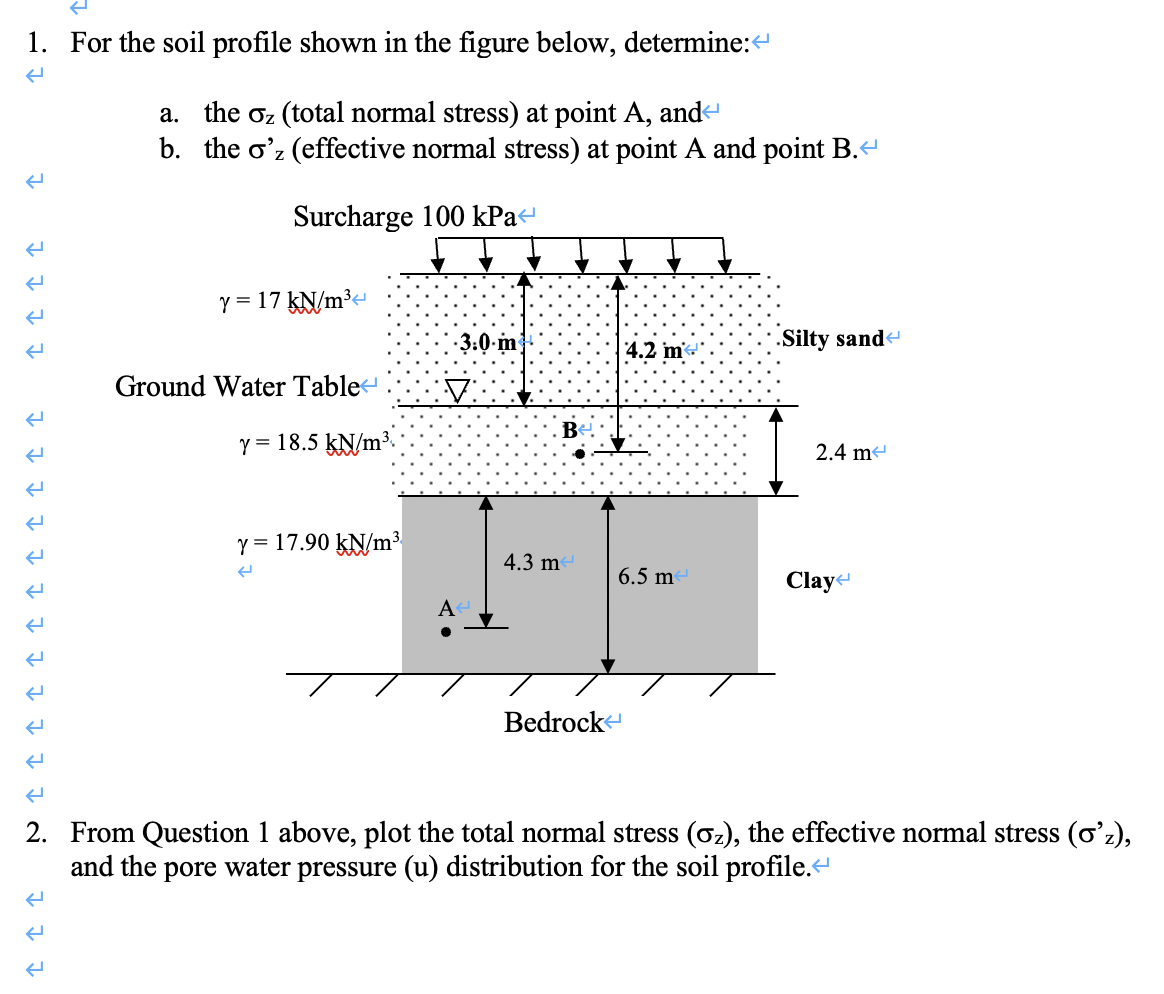

1. For the soil profile shown in the figure below, determine: a. the Oz (total normal stress) at point A, and b. the o’z (effective normal stress) at point A and point B.“ Surcharge 100 kPa- Î Î Î y = 17 kN/m34 3:0 m 4.2 m Silty sand Ground Water Table y = 18.5 kN/m3 2.4 m JJJJJJJ y= 17.90 kN/m² 4.3 m 6.5 m Clay A Bedrock 2. From Question 1 above, plot the total normal stress (oz), the effective normal stress (o’z), and the pore water pressure (u) distribution for the soil profile.
